Lower front axle - AR33.10-P-0101TX

MODEL 219.3

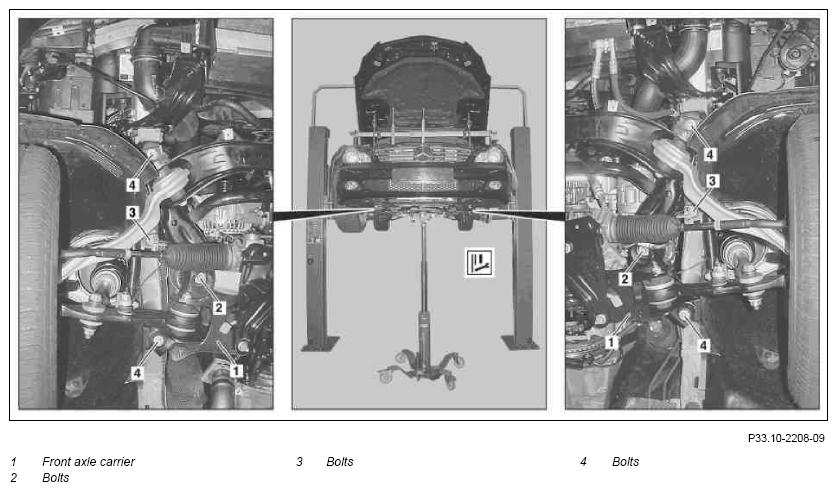

Fig 1: Identifying Lower Front Axle Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

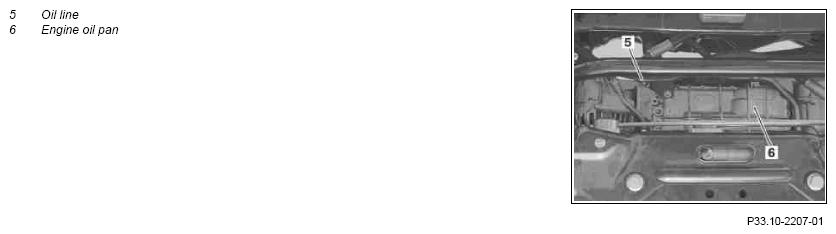

Fig 2: Identifying Lower Front Axle Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1	Mount engine support frame and raise engine	Do not lift up the engine too far otherwise the engine mounts will be subjected to tensile loads and as a result their vulcanizing may be damaged.	AR33.10-P-0100-01TX
2.1	Remove bottom engine compartment paneling	Vehicles with gasoline engine	AR61.20-P-1105TX
2.2	Remove bottom section of soundproofing	Vehicles with diesel engine	AR94.30-P-5300TX
3	Detach oil line (5) at the front of the engine oil pan (6)	Engine 113	*BA01.45-P-1012-01B
		Engine 272, 273	*BA01.45-P-1007-01M
		Engine 156	*BA01.45-P-1005-01R
		Engine 642	*BA01.45-P-1011-01Q
4	Detach steering coupling from the lower steering shaft		AR46.10-P-8000TX
5	Support and secure the front subframe (1) with the transmission jack and transmission plate		AR33.10-P-0100-03TX
6	Detach engine mounts from front axle carrier (1); to do this, unscrew bolts (2)	Vehicles with gasoline engine	*BA22.10-P-1001-01S
6		Vehicles with diesel engines	*BA22.10-P-1001-01D
7	Detach torsion bar bearings from longitudinal member; to do this, unscrew bolts (3)		*BA32.20-P-1002-02M
8	Detach front axle carrier (1) from longitudinal member; to do this, remove bolts (4)		*BA33.10-P-1002-01J
9	Lower front axle carrier (1)	Only lower front axle carrier (1) far enough to ensure that lines and components are not damaged!
10	Install in the reverse order

ENGINE SUSPENSION, ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation		Engine 642 in model 219
BA22.10-P-1001-01D	Bolt, front engine mount to front axle carrier	Nm	35

ENGINE SUSPENSION, ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation		Engine 113 in model 219	Engine 156.983 in model 219
BA22.10-P-1001-01S	Bolt, front engine mount to front axle carrier	Nm	35	35

ENGINE SUSPENSION, ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation		Engine 272, 273 in model 219
BA22.10-P-1001-01S	Bolt, front engine mount to front axle carrier	Nm	35

FRONT AXLE CARRIER

Number	Designation		Model 219.3
BA33.10-P-1002-01J	Bolt, front axle carrier to longitudinal member	Nm	100

FRONT AXLE STABILIZER BAR

Number	Designation		Model 219.3
BA32.20-P-1002-02M	Bolt, stabilizer bar bushing to longitudinal member	Nm	50

OIL PAN

Number	Designation			Engine 113.940/941/942/943/944/945/946/960/961/962/963/965/967/968/969/980/981/982/984/986/992/995	Engine 113.990
BA01.45-P-1012-01B	Bolt, oil line bracket to oil pan	M6	Nm	9	9

OIL PAN

Number	Designation			Engine 156
BA01.45-P-1005-01R	Bracket, oil lines to oil pan	M6	Nm	5

OIL PAN

Number	Designation			Engine 642
BA01.45-P-1011-01Q	Bolt, oil line bracket to oil pan	M6	Nm	11

OIL PAN

Number	Designation			Engine 272	Engine 273
BA01.45-P-1007-01M	Bolt, oil line bracket to oil pan	M6	Nm	9	9
