Remove/install the pneumatic pump for dynamic seat control - AR91.25-P-1580TX
MODEL 219.3 with CODE (433) Left dynamic seat, incl. multicontour seat with CODE (434) Right dynamic seat, incl. multicontour seat
MODIFICATION NOTES
| 21.11.06 | Special tool added | Step 5 |
| Remove/install | |||
| 1 | Remove side paneling in left side of trunk | AR68.30-P-4800TX | |

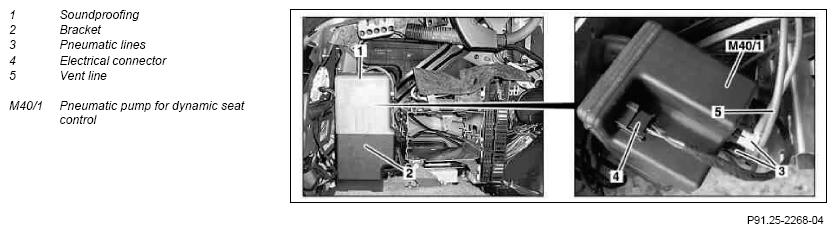

| 2 | Fold up soundproofing (1) from pneumatic pump for dynamic seat control (M40/1) | ||
| 3 | Remove vent line (5) from soundproofing (1) | ||
| 4 | Disconnect electrical connector (4) | ||
| 5 | Seal off pneumatic lines (3) of pneumatic pump for dynamic seat control (M40/1) | Fig 2 | |
| 6 | Remove pneumatic pump for dynamic seat control (M40/1) with soundproofing (1) upwards out of bracket (2) | ||
| 7 | Remove strut in front of overpressure reservoir for dynamic seat control | Only when installing a new pneumatic pump for dynamic seat control (M40/1), on vehicles up to 31.8.06 | AR91.25-P-1570TX |
| 8 | Install new pneumatic wiring harness for dynamic seat control pneumatic pump (M40/1) | Only when installing a new pneumatic pump for dynamic seat control (M40/1), on vehicles up to 31.8.06 | AR91.25-P-1580-01T |
| 9 | Install in the reverse order | ||
| 10 | Activate pneumatic pump for dynamic seat control (M40/1) | After installing new pneumatic pump for dynamic seat control (M40/1). | |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| 11 | Carry out function check |
