Remove/install overpressure reservoir for dynamic seat control - AR91.25-P-1570TX
MODEL 219.3 with CODE (433) Left dynamic seat, incl. multicontour seat with CODE (434) Right dynamic seat, incl. multicontour seat
| Remove/Install | |||
| 1 | Remove the pneumatic pump for the dynamic seat control | AR91.25-P-1580TX | |

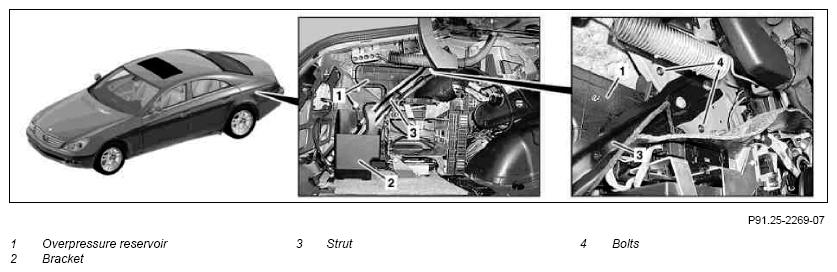

| 2 | Take out bracket (2) | ||
| 3 | Remove strut (3) | ||
| 4 | Remove bolts (4) | ||
| 5 | Disconnect the pneumatic lines from the overpressure reservoir (1) to the dynamic seats and remove the overpressure reservoir (1) | ||
| 6.1 | Modify the pneumatic lines to the pneumatic pump for dynamic seat control | Only when installing a new overpressure reservoir (1). | |
| 7 | Install in the reverse order |
