Remove/install seat-back lining on front seat backrest - AR91.10-P-1910TX

MODEL 219.3

Shown on left front seat

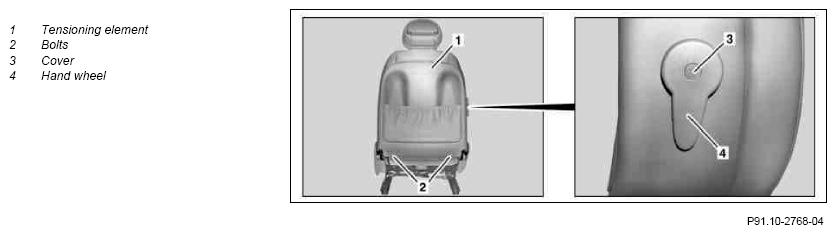

Fig 1: Identifying Seat-Back Lining On Front Seat Backrest Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Move the left or right front seat forward and move the backrest to the vertical position	See Operating Instructions
2.1	Unclip cover (3) with suitable screwdriver and remove screw beneath it	Only with driver seat without code (404) left multicontour seat or without code (433) left dynamic seat, incl. multicontour seat
3.1	Remove hand wheel (4) for lumbar support	Only with driver seat without code (404) left multicontour seat or without code (433) left dynamic seat, incl. multicontour seat
4	Remove screws (2)
5	Slide seat-back lining (1) at front seat backrest downward out of guides and remove	Remove front seat backrest seat-back lining (1) carefully to prevent damage to guides on seat-back lining (1).
6	Install in the reverse order
