Adjust trunk lid - AR88.50-P-5200TX
MODEL 219.3
| Removing | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| Open trunk lid (1) with emergency key during adjusting work | |||

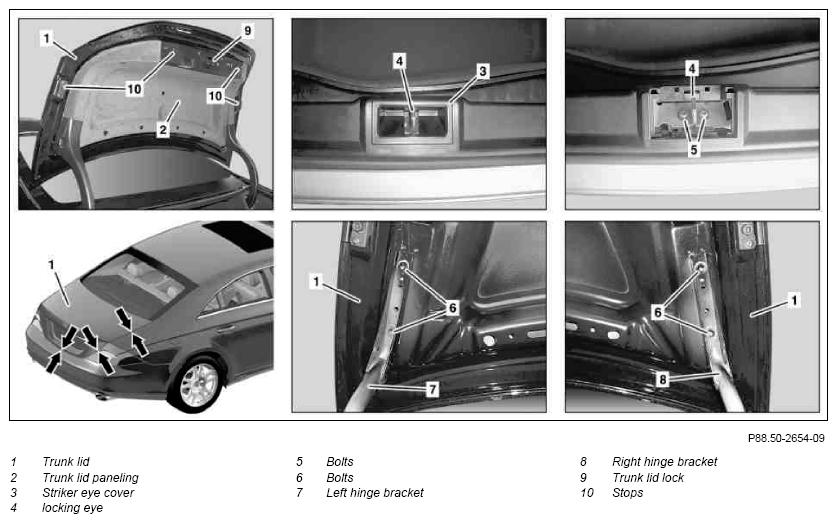

| 1 | Remove trunk lid paneling (2) form trunk lid (1) | AR68.30-P-8150TX | |
| 2 | Unclip striker eye cover (3) | ||
| Adjust in longitudinal direction | |||
| 3 | Loosen bolts (5) at striker eye (4) | ||
| 4 | Loosen bolts (6) from left hinge lever (7) and right hinge lever (8) | ||
| 5 | Adjust trunk lid (1) in longitudinal direction | ||
| Gap dimensions on hoods, doors and lids | AR60.00-P-0700-01Y | ||
| Gap dimension, trunk lid to top or rear fender Gap dimension, trunk lid to taillamp Gap dimension between trunk lid and bumper |
*BE60.00-P-1003-01O | ||
| Figure | |||
| 6 | Tighten bolts (6) on left hinge lever (7) and right hinge lever (8) | *BA88.50-P-1003-01D | |
| Adjust height | |||
| 7 | Screw in stops (10) | ||
| 8 | Adjust locking eye (4) so that height of trunk lid (1) matches height of fender | ||
| 9 | Tighten screws (5) | *BA88.50-P-1001-01D | |
| 10 | Mark contact surface of stops (10) with chalk and adjust stops (10) | Do not slam the trunk lid (1), instead, push slowly into lock by hand. |
|
| 11 | Check closing system for proper function | ||
| Install | |||
| 12 | Install striker eye cover (3) | ||
| 13 | Install trunk lid paneling (2) on trunk lid (1) | AR68.30-P-8150TX |
TEST VALUES FOR GAP DIMENSIONS ON HOODS, DOORS AND LIDS
| Number | Designation | Model 219 | |||
|---|---|---|---|---|---|
| BE60.00-P-1003-01O | Gap dimension | Trunk lid to rear fender, top | Dimension "J" | mm | 4.0 (±0.5) |
| Trunk lid to rear lamp unit | Dimension "K" | mm | 2.5 (±0.5) | ||
| Trunk lid to bumper | Dimension "L" | mm | 7.0 (±1) | ||
| Rear fender to rear lamp unit | Dimension "M" | mm | 2.5 (±0.5) | ||
| See picture | AR60.00-P-0700-01Y | ||||
TRUNK LID
| Number | Designation | Model 219 | |
|---|---|---|---|
| BA88.50-P-1001-01D | Bolt to locking eye | Nm | 9 |
| BA88.50-P-1003-01D | Bolt, hinge bracket to trunk lid | Nm | 10 |
