Remove/install trunk lid paneling - AR68.30-P-8150TX

MODEL 219.3

Shown on vehicle with code (889) Keyless Go and with code (881) Remote trunk closing (RTC)

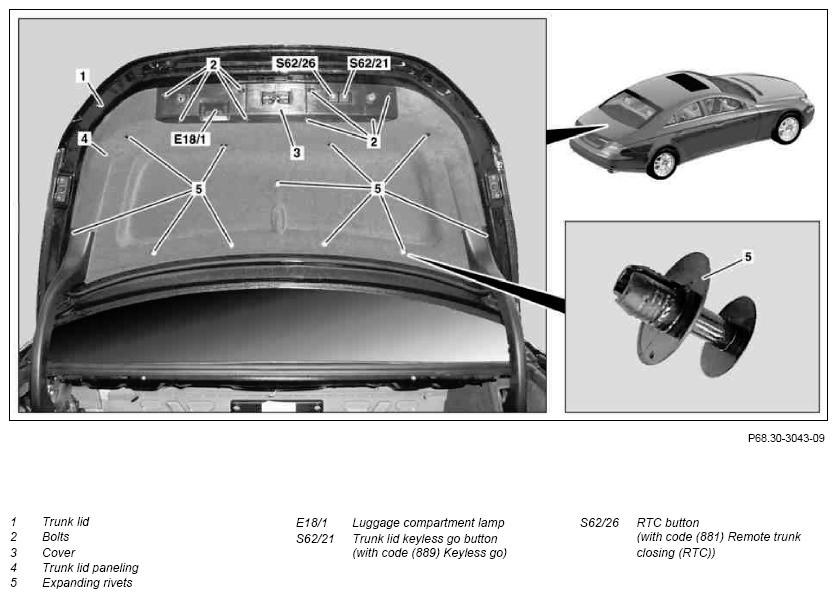

Fig 1: Identifying Trunk Lid Paneling Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Open trunk lid (1)	See Operating Instructions
2	Unscrew bolts (2)		*WH58.30-Z-1007-20A
3	Loosen cover (3) until electrical connectors are accessible
4.1	Disconnect electrical connector from trunk lid keyless go button (S62/21)	Only on vehicles with code (889) Keyless go
5.1	Disconnect electrical connector from RTC button (S62/26)	Only on vehicles with code (881) Remote trunk closing (RTC)
6	Disconnect electrical connector from luggage compartment lamp (E18/1) and remove cover (3)
7	Remove expansion rivets (5)
8	Remove trunk lid paneling (1)
9	Install in the reverse order
10	Perform function check
