Remove/install windshield washer system pump - AR82.35-P-6002TX
MODEL 219.3
Shown with code (600) Headlamp cleaning system
| Remove/Install | |||
| 1 | Lift vehicle on lifting platform. | AR00.60-P-1000TX | |
| 2 | Remove inner fender in right front fender | AR88.10-P-1300TX | |
| 3 | Unplug electrical connectors (1, 3) | ||
| 4.1 | Separate electrical connector (2) | Only on vehicles with code (600) Headlamp cleaning system | |
| 5 | Detach washer fluid hose (4) from the windshield washer fluid pump (M5/1) | ||
| 6 | Unclip bracket (5) from washer fluid reservoir (6) | ||
| 7 | Using mounting wedge, press windshield washer fluid pump (M5/1) from washer fluid reservoir (6) | ||

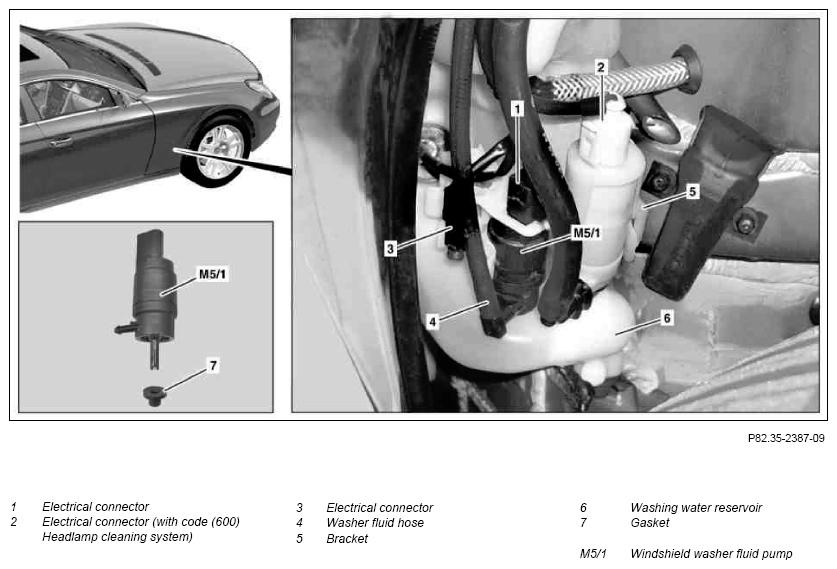

| Figure | |||
| 8 | Install in the reverse order | ||
| 9 | Fill washer fluid reservoir (6) | ||
| Check windshield washing unit fluid level, top up if necessary | AP82.35-P-8210TX | ||
| 10 | Check windshield washer system for proper function | ||
| 11.1 | Check headlamp cleaning system for proper function | Only on vehicles with code (600) Headlamp cleaning system |
