Remove/install microphone - AR82.62-P-7700TX

MODEL 219.3 up to 2.3.08 except CODE (809) Model year 2009 with CODE (810) Sound system Sound amplifier microphone

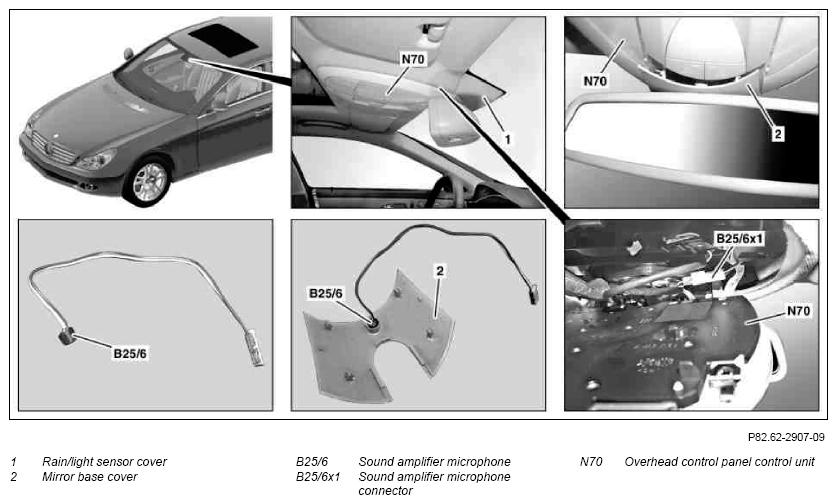

Fig 1: Identifying Microphone Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Pry off rain/light sensor cover (1) with long wedge toward bottom and remove		Figure
2	Use long wedge to unclip mirror base cover (2) from overhead control panel control unit (N70)		Figure
3	Remove overhead control panel control unit (N70) until the sound amplifier microphone connector (B25/6x1) is accessible	Do not disconnect electrical connectors from overhead control panel control unit (N70).	AR82.20-P-1000TX
4	Disconnect sound amplifier microphone connector (B25/6x1) and remove mirror base cover (2)
5	Unclip sound amplifier microphone (B25/6) from mirror base cover (2) and remove	Ensure that the sound amplifier microphone (B25/6) is correctly seated in the mirror base cover (2).
6	Install in the reverse order

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
