Remove/install center high-mounted stop lamp - AR82.10-P-5375TX

MODEL 219.3

Shown with Code (540) Electric roller blind for rear window

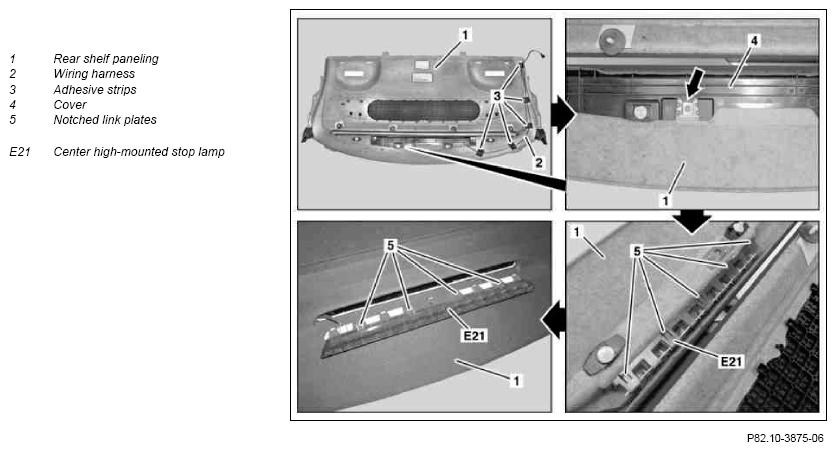

Fig 1: Identifying Center High-Mounted Stop Lamp Remove/Install Components - Shown With Code 540

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1.1	Remove rear shelf panel (1)	On vehicles without Code (540) Electric roller blind for rear window	AR68.30-P-4581TX
2.1	Remove electric roller blind	On vehicles with Code (540) Electric roller blind for rear window	AR68.50-P-4600TX
3	Detach electric wiring harness (2) from the rear shelf panel (1)	secure electric wiring harness (2) using new adhesive strips (3).
4	Detach cover (4) from link plate (arrow) and remove
5	Unclip center high-mounted stop lamp (E21) at the notched link plates (5) out of the rear shelf panel (1), guide electric wiring harness (2) through the installation opening in the rear shelf panel (1) and remove center high-mounted stop lamp (E21)
6	Install in the reverse order
