Retrofit sound system - AZ82.62-P-0002TX

MODEL 219.3 with CODE (810) Sound system AMG high-end sound system

Picture 1

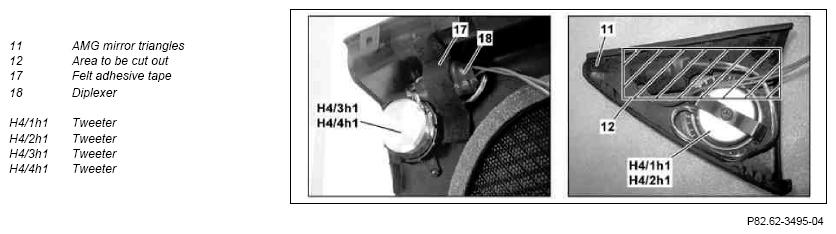

Fig 1: Identifying Sound System Components (1 Of 3)

Courtesy of MERCEDES-BENZ USA

Picture 2

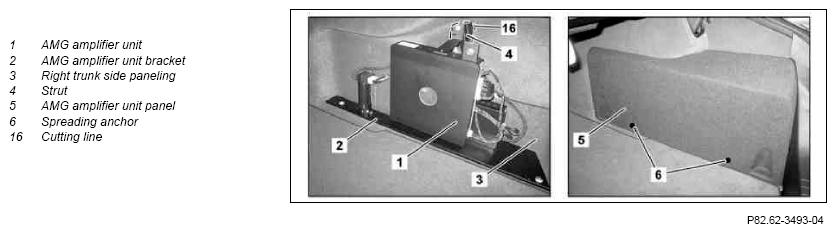

Fig 2: Identifying Sound System Components (2 Of 3)

Courtesy of MERCEDES-BENZ USA

Figure 3

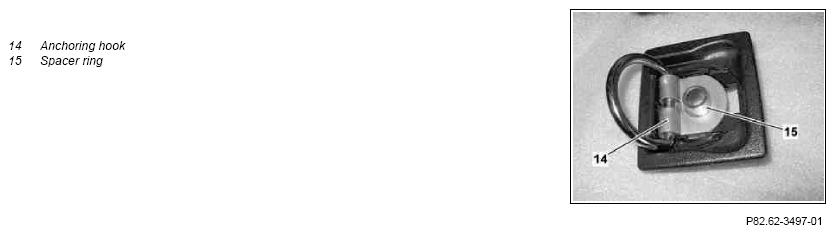

Fig 3: Identifying Sound System Components (3 Of 3)

Courtesy of MERCEDES-BENZ USA

	Removing
	Information on preventing damage to electronic components due to electrostatic discharge	All models	AH54.00-P-0001-01A
	Notes on avoiding damage to fiber optic cables during repair work	Model 219.3 with Media Oriented System Transport (MOST).	AH82.60-P-0001-05TX
		Leave speaker in original packaging as long as possible. Do not push in or damage speaker membranes. Pushed in or torn speakers are audible in the test.
	Remove series logo (Harman or Becker) from speaker grilles.
		If possible, use protective foils against soiling. Perform installation and removal in area of rear shelf and C-pillars with gloves.
1	Connect Star Diagnosis and read out fault memory, save if necessary
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
2	Disconnect ground cable from battery
		Model 219.3	AR54.10-P-0003TX
3	Remove loudspeaker in dashboard
		Model 219.3	AR82.62-P-7833TX
4	Remove front door speakers
		Model 219.3	AR82.62-P-7845TX
5	Remove mirror triangles
6	Remove speakers in rear doors
		Model 219.3	AR82.62-P-7874TX
7	Remove speaker in rear shelf
		Model 219.3 with code (810) Sound system.	AR82.62-P-7836TX
8	Remove side paneling in trunk
		Model 219.3	AR68.30-P-4800TX
9	Remove audio component center	Only vehicles up to code (808) Model year 2008.
		Model 219.3 up to 2.3.08 except code (809) Model year 2009	AR82.60-P-7605TX
	Install
10	Install AMG speaker in instrument panel
		Model 219.3	AR82.62-P-7833TX
11	Install AMG speakers in front doors
		Model 219.3	AR82.62-P-7845TX
12	Install AMG mirror triangles	To ensure that original foam material can be used in AMG mirror triangles (11), it must be cut out in area of connector (see picture 1, striped area). To do so, place connector on foam material and mark area to be cut out (12).
13	Install AMG speakers in rear doors	Insert diplexers (18), tweeter H4/3h1 and H4/4h1, as shown in picture 1, into door trim and fix in place with felt adhesive tape (17).
		Model 219.3	AR82.62-P-7874TX
14	Install AMG speaker in rear shelf	Only reinstall rear shelf following system check at end of conversion work.
		Model 219.3 with code (810) Sound system.	AR82.62-P-7836TX
15	Install strut (4) to the right in trunk	Only model 219.3 without code (489) Airmatic (semi-active air suspension).
16	Install AMG amplifier unit (1)	Model 219.3	AZ82.62-P-0002-01T
17	Perform system test	To do so, reconnect battery. All newly installed speakers must undergo a function or audio test before remaining parts are installed.
18	Install in the reverse sequence	Operation step 9, 8, 7
19	Install AMG amplifier unit panel (5)	Engage AMG amplifier unit panel (5) in upper area and fasten at bottom with two expansion anchors (6) (see picture 2). When installing anchoring hooks (14), ensure that spacer rings (15) are seated correctly below anchoring hooks (14) (see picture 3).
