Remove/install front brake control cable - AR42.20-P-0520P: Notes
MODEL 203, 209
Shown on model 203
MODIFICATION NOTES
| 12.12.02 | Check version of pedal assembly, added | Step 12 | BT42.20-P-0510-01A |
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Raise vehicle with lifting platform | AR00.60-P-1000P | |
| 2.1 | Remove rear seat cushion | Vehicles without code P98 Black Series |
AR91.12-P-1020QA |
| 2.2 | Remove battery | Vehicles with code P98 Black Series | AR54.10-P-0005P |
| 3.1 | Remove cover panel under rear seat cushion | Vehicles without code P98 Black Series | |
| 3.2 | Remove cover panel under battery | Vehicles with code P98 Black Series | |

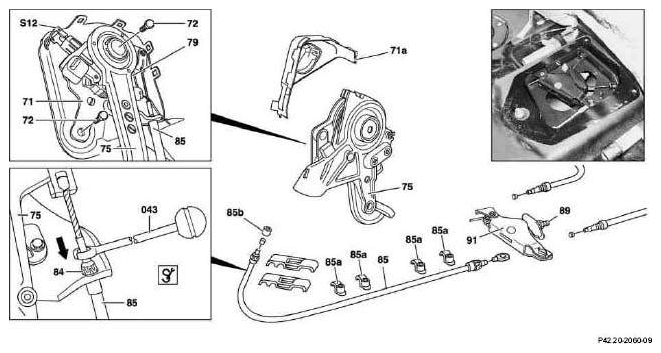

| 4 | Loosen adjusting nut (89) | ||
| 5 | Unhook brake cable (85) at the intermediate lever (91) and detach from the intermediate lever housing using the unclipping device (043) | Fig 2 | |
| 6 | Remove front left floor covering | AR68.20-P-2050P | |
| 7 | Remove cover below instrument panel | AR68.10-P-1500P | |
| 8 | Remove cover (71a) of the parking brake pedal (75) | ||
| 9 | Detach brake cable (85) from parking brake pedal (75) | Fig 2 | |
| 10 | Remove heat shield of exhaust system | ||
| 11 | Support automatic transmission with transmission jack and lash down securely | Vehicles with code P98 Black Series | |
| 12 | Detach engine crossmember with rear engine mount from frame floor assembly and lower automatic transmission slightly | Vehicles with code P98 Black Series | |
| *BA22.10-P-1005-03B | |||
| Notes on bolted connections with self-tapping screws | AH00.00-P-0007-01SF | ||
| 13 | Unclip and pull out brake cable (85) | ||
| 14 | Install in the reverse order | ||
| Checking | |||
| 15 | Check version of pedal assembly | ||
| Parking brake pedal assembly modified | BT42.20-P-0510-01A | ||
| 16 | Adjust parking brake | AR42.20-P-0540A | |
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 209 | |
|---|---|---|---|
| BA22.10-P-1005-03B | Bolt, rear engine support to frame floor assembly | Nm | 50 |
