Remove/install lamp unit - AR82.10-P-4730T
WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 211.0/2/6
When removing the left and right front lamp unit
Shown on the left front lamp unit
MODIFICATION NOTES
| 17.3.09 | Transfer basic data added for vehicles as of 1.6.06 | Step 1 |
| Remove/install | |||
| 1 | Buffer basic data of left xenon light control unit and the right xenon light control unit in Star Diagnosis | As of 1.6.06 with code (614) Bi-xenon headlamp unit or code (615) Bi-xenon headlamp unit or code (616) Bi-xenon headlamp unit with integrated asymmetric curve illumination or code (618) Bi-xenon headlamp or code (621) Intelligent Light System (left-hand traffic) or code (622) Intelligent Light System (right-hand traffic) When replacing the left front lamp unit (E1) or the right front lamp unit (E2). |
|
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| 2 | Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit | ||
| 3 | Remove front bumper | AR88.20-P-2000T | |

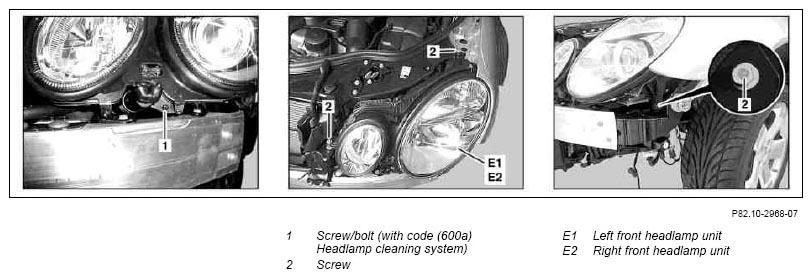

| 4 | Unscrew bolt (1) | For vehicles with code (600a) Headlamp cleaning system | |
| 5 | Remove bolts (2) | ||
| 6 | Take out left front lamp unit (E1) towards the front until the electrical connectors at the left front lamp unit (E1) are accessible. | ||
| 7 | Disconnect electrical connectors on left front lamp unit (E1) and remove left front lamp unit (E1). | ||
| 8 | Take out right front lamp unit (E2) towards the front until the electrical connectors at the right front lamp unit (E2) are accessible. | ||
| 9 | Disconnect electrical connectors on right front lamp unit (E2) and remove right front lamp unit (E2). | ||
| 10 | Install in the reverse order | ||
| 11 | Check adjustment of the left front lamp unit (E1) and the right front lamp unit (E2) and correct, if necessary. | ||
| Check and correct headlamp adjustment | AP82.10-P-8260T |
