Connect STAR DIAGNOSIS and read out fault memory - AD00.00-P-2000-04A

WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.

Illustrated on model 210

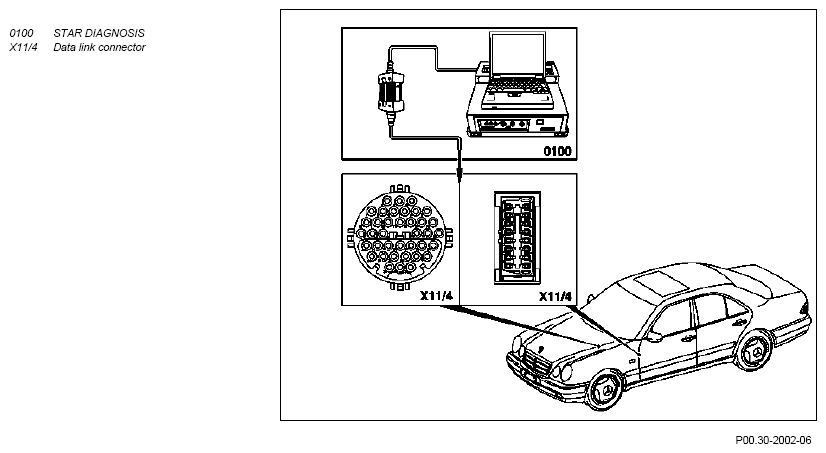

Fig 1: Identifying Star Diagnosis Connection & Data Link Connector (Model 210)

G07194213

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Illustrated on model 163

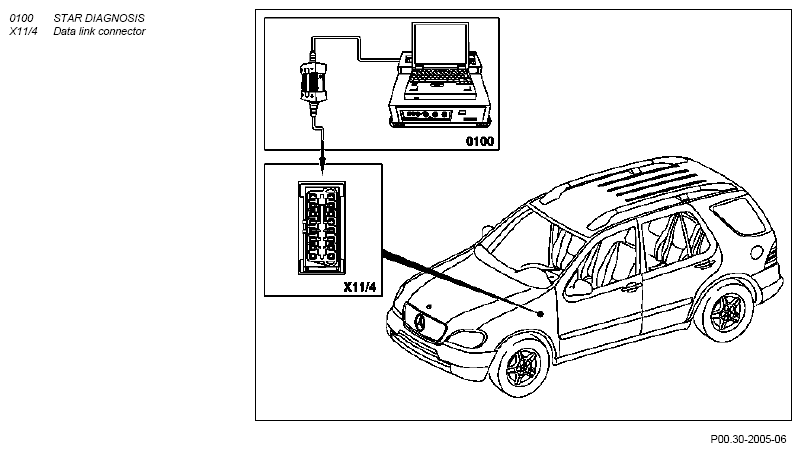

Fig 2: Identifying Star Diagnosis Connection & Data Link Connector (Model 163)

G07194214

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 164.1

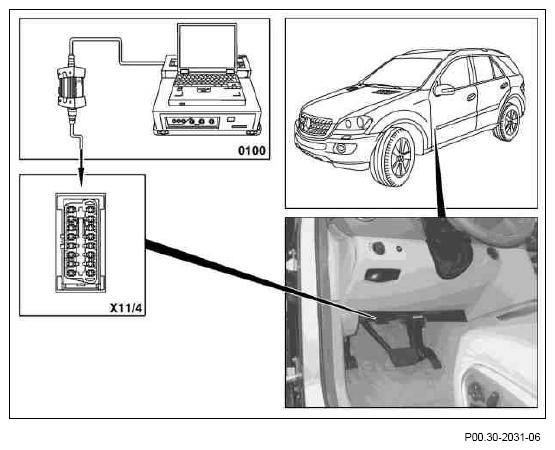

Fig 3: Identifying Star Diagnosis Connection & Data Link Connector (Model 164.1)

G07194215

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Illustrated on model 461.302

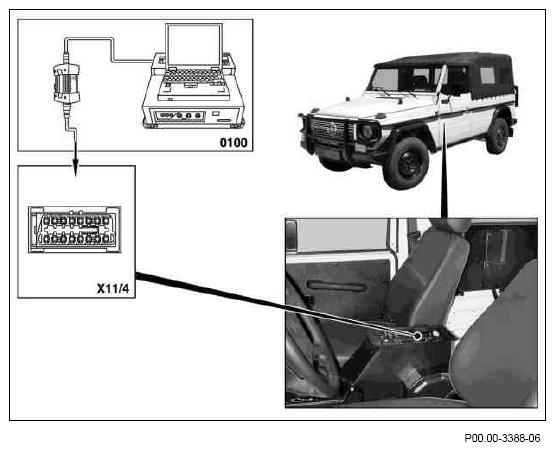

Fig 4: Identifying Star Diagnosis Connection & Data Link Connector (Model 461.302)

G07194216

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Illustrated on model 171.4

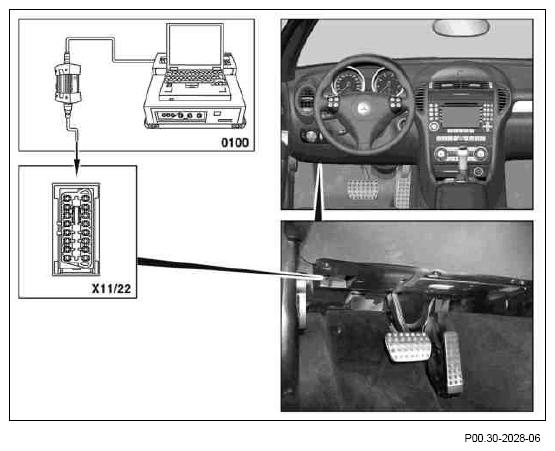

Fig 5: Identifying Star Diagnosis Connection & Data Link Connector (Model 171.4)

G07194217

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Connect Star Diagnosis (0100).
Switch on ignition.
Start the Diagnosis Assistance System.
Select the model series in the menu.
The work procedures in the diagnosis program are menu-assisted.
Disconnect STAR DIAGNOSIS (0100).
Stored faults which may be caused by disconnecting cables or by simulation during testing operations must be deleted in the diagnostic trouble code memory following completion of the operations.
