Removing and installing combination switch - AR54.25-P-2800T
WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 211.0/2/6
Up to model year 04
| Remove/install | ||
| 1 | Remove cruise control switch (S40/4) | AR54.25-P-2803T |
| 2 | Remove steering angle sensor (N49) | AR46.10-P-0300T |

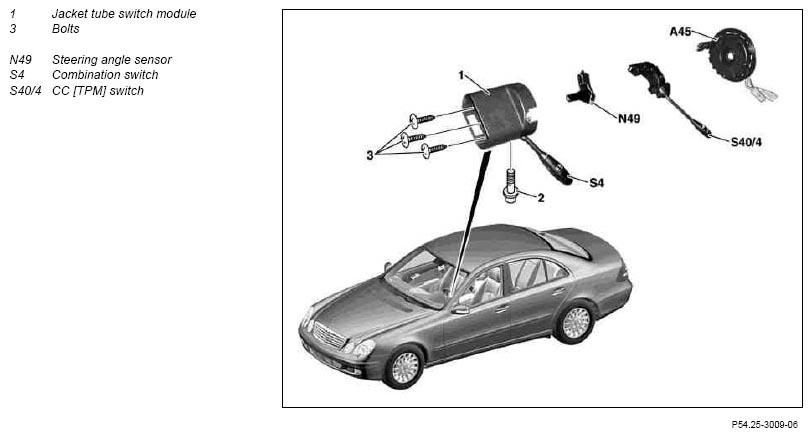

| 3 | Unscrew screws (3) and remove combination switch (S4) from the steering column tube switch module (1) | |
| 4 | Install in the reverse order | |
| 5 | Perform function check on combination switch (S4) |
