Remove/install steering angle sensor - AR46.10-P-0300T
WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 211.0/2/6
Up to model year 04
| Remove/Install | ||
| 1 | Remove clock spring contact | AR46.10-P-0200T |
| 2 | Remove screw (1) | |

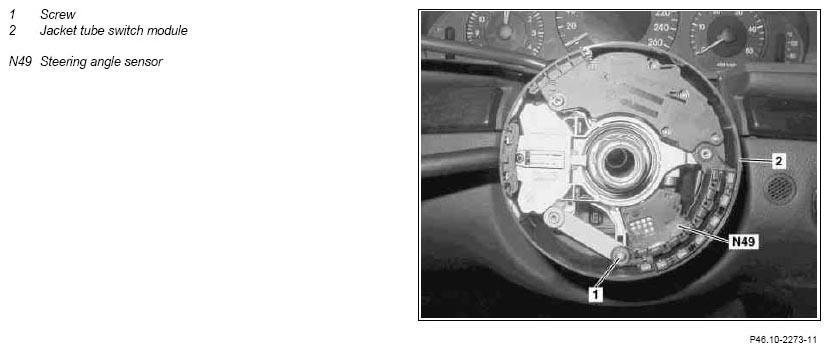

| 3 | Pull steering angle sensor (N49) out of steering column switch module (2) | |
| 4 | Install in the reverse order | |
| 5 | Activate steering angle sensor | AR46.10-P-0300-01T |
