Remove/install stowage box - AR68.20-P-2320T
WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 211.0/2/6

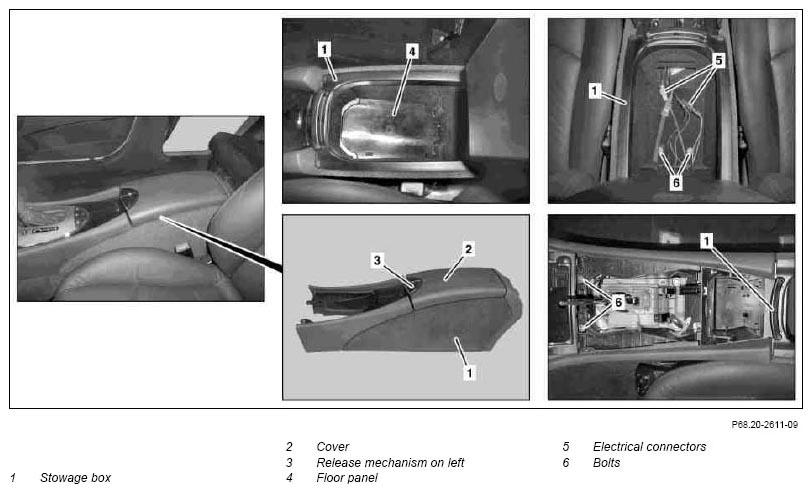

Shown on model 211.0
| Remove/Install | |||
| 1 | Remove ashtray from front center console | AR68.20-P-2400T | |
| 2 | Remove cover on center console | AR68.20-P-2350T | |
| 3 | Open cover (2) of stowage box (1) | ||
| 4 | Remove liner out of stowage box (1) | ||
| 5 | Pull out baseplate (4) using pulling hook | *140589023300 | |
| 6 | Disconnect electrical connectors (5) | ||
| 7 | Remove bolts (6) | ||
| 8 | Lift stowage box (1) at front and remove | ||
| 9 | Install in the reverse order |
