Remove/install cover on center console - AR68.20-P-2350T
WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 211.0/2/6
MODIFICATION NOTES
| 5.7.06 | "Disconnect/connect battery ground line" removed |
| Remove/install | ||

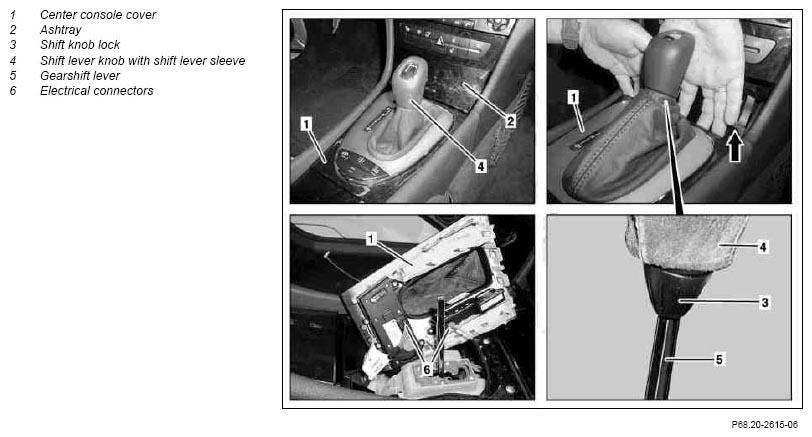

| 1 | Open ashtray (2) and unclip the center console cover (1) in the direction of the arrow out of the center console | |
| 2 | Release shift lever knob arresting mechanism (3) counterclockwise | |
| 3 | Detach shift lever knob with shift lever sleeve (4) from gearshift lever (5) | |
| 4.1 | Separate electrical connectors (6) | On vehicles with code (489a) Airmatic (semi-active air suspension), (220a) Parktronic system (PTS), (889) Keyless Go, (423a) Automatic 5-speed transmission (NAG), (219a) Distronic (DTR), (228) Stationary heater |
| 5 | Remove center console cover (1) together with the shift lever knob with shift lever sleeve (4) | |
| 6 | Press shift lever knob with shift lever sleeve (4) out of the center console cover (1) | |
| 7 | Install in the reverse order |
