Remove/install front end crossmember - AR62.30-P-2300T
WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 211
| Remove/install | |||
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | When moving components, ensure that no body parts or limbs are within the operating range of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Open engine hood | AR88.40-P-1000T | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||

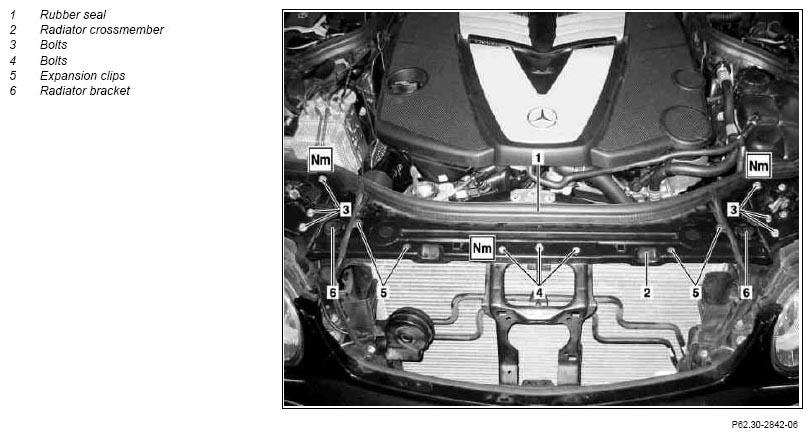

| 2 | Remove rubber seal (1) upward in area of radiator crossmember (2) | ||
| 3 | Remove bolts (3) | *BA62.30-P-1008-02A | |
| 4 | Remove screws (4). | *BA62.30-P-1009-02A | |
| 5 | Pull out expansion clips (5) | ||
| 6 | Remove radiator bracket (6) | Check retaining lugs for radiator bracket (6), replace if necessary | |
| 7 | Slightly lift radiator crossmember (2) and unclip hood release cable on right engine hood catch from retaining clips. | ||
| 8 | Remove radiator crossmember (2) | ||
| 9.1 | Remove retaining clips from hood release cable | ||
| 10 | Install in the reverse order | ||
| 11.1 | Check setting of Distronic sensor | AR30.30-P-1000R | |
| 12 | Check lock and safety hooks of engine hood | ||
| Check lock and safety hooks of engine hood | AP88.40-P-8851T |
FRONT END WITH FRONT REINFORCEMENT
| Number | Designation | Model 211 | |
|---|---|---|---|
| BA62.30-P-1008-02A | Bolt, center reinforcement to outer reinforcement | Nm | 10 |
| BA62.30-P-1009-02A | Bolt, center reinforcement to catch hook reinforcement | Nm | 10 |
