Remove/install clock spring contact - AR46.10-P-0200T

WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 211.0/2/6

Up to model year 04

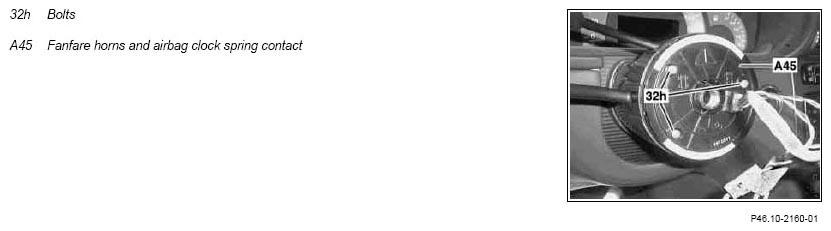

Fig 1: Identifying Fanfare Horns And Airbag Clock Spring Contact And Bolts

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Remove steering wheel		AR46.10-P-0100T
2	Remove steering column switch module		AR54.25-P-2800-01T
3	Unscrew the bolts (32h) until the fanfare horns and airbag clock spring contact (A45) can be removed from the steering column switch module	The screws (32h) simultaneously serve as twisting protection or assembly aid.
4	Carefully pry off fanfare horns and airbag clock spring contact (A45) at the periphery from the steering column switch module and remove	Installation: If the fanfare horns and airbag clock spring contact (A45) was twisted: ↓
4		Adjust the center position of the fanfare horns and airbag clock spring contact (A45).	AR46.10-P-0200-01I
	Check
5	Check fanfare horns and airbag clock spring contact (A45) for damage and replace if necessary
6	Install in the reverse order
