Remove/install electric parking brake controller unit - AR42.20-P-0590SX
MODEL 216
MODEL 221
MODIFICATION NOTES
| 1.9.10 | "Perform brake test on test bench" reference changed | Test sequence augmented/revised |
| Remove/install | |||
|---|---|---|---|
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||

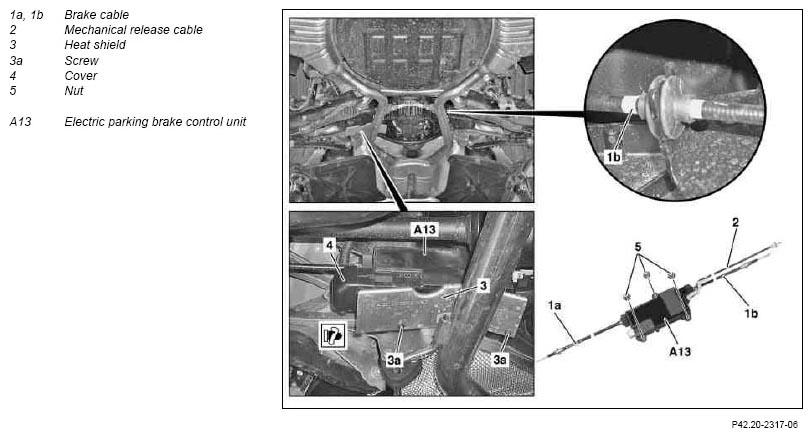

The brake cables (1a, 1b) may not be detached from the electric parking brake controller unit (A13) which has been installed . The mechanical release cable (2) must not be detached from the electric parking brake controller unit (A13) otherwise it will be damaged. |
|||
| 1 | Use STAR DIAGNOSIS to bring the brake cables (1a, 1b) into the assembly position | ||
| 2 | Remove rear wheels | AP40.10-P-4050SX | |
| Clean | |||
| 3 | Clean the electrical connector and the area around it on the controller unit (A13) | ||
| 4 | Remove cover (4) of electrical connector from the electric parking brake controller unit (A13) | ||
| 5 | Release and disconnect electrical connector on the electric parking brake controller unit (A13) | ||
| 6 | Remove rear brake disks | AR42.10-P-0220SX | |
| 7 | Unhook brake cables (1a, 1b) from the wheel carriers | AR42.20-P-0525-03SX | |
| 8 | Remove fender liner in right rear fender | ||
| 9 | Detach and expose manual release cable (2) from the filler neck recess in the right-hand rear fender | AR42.20-P-0590-01SX | |
| 10 | Unhook rubber grommet of the right-hand brake cable (1b) from the right-hand bearing bracket | ||
| 11 | Remove bolts (3a) and remove heat shield (3) | ||
| 12 | Unscrew nuts (5) and remove electric parking brake controller unit (A13) with brake cables (1a, 1b) and remove manual release cable (2) | *BA42.20-P-1001-01K | |
| 13 | Install in the reverse order | ||
| 14 | Adjust parking brake | AR42.20-P-0540SX | |
| 15 | Commission control unit of the electric parking brake controller unit (A13) using STAR DIAGNOSIS, added | When replacing the electric parking brake controller unit (A13) |
|
| Checking | |||
| Risk of death caused by limbs being caught or crushed by rotating parts when performing tests on the brake test stand | Never leave the vehicle unattended on the rollers except in an emergency. Ensure that no one is under the vehicle or near rotating parts during testing. In case of emergency, use the EMERGENCY STOP switch to shut down test stand. | AS42.00-Z-0001-01A | |
| 16 | Carry out brake test on the test stand | AP42.00-P-4290BA |
PARKING BRAKE
| Number | Designation | Model 216 | Model 221 | |
|---|---|---|---|---|
| BA42.20-P-1001-01K | Nut, electric parking brake controller unit to bracket | Nm | 7 | 7 |
