ME-SFI part load/full load operation, function - GF07.61-P-3016V
ENGINE 273.961 in MODEL 216, 221 up to Model Year 8

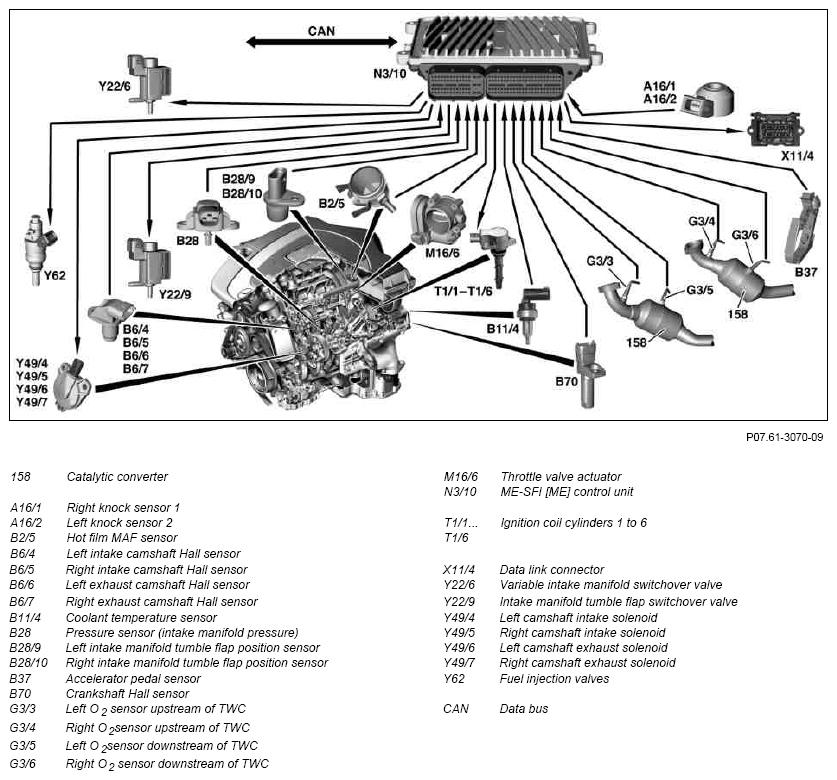

Shown on engine 272
Part load operation: When the engine is at operating temperature optimal emission levels and good fuel consumption are assured in combination with the lambda control.
Full load operation: Maximum engine torque is produced at a pedal value of > 90 %. The injection time is extended accordingly for this purpose.
The particular quantity of fuel is metered to the engine in line with the performance map. The fuel quantity depends on:
- Coolant temperature
- Intake air temperature (only in warming-up phase)
- Engine speed
- Engine load
- Closed-loop mixture control
- Intake manifold length
- Tumble flap position
- Camshaft position
- Ignition angle.
| Component description for the ME-SFI [ME] control unit | GF07.61-P-6000V | |
| Component description for the coolant temperature sensor | GF07.04-P-6040V | |
| Component description for the camshaft Hall sensor | GF07.04-P-6020V | |
| Component description for the crankshaft Hall sensor | GF07.04-P-6220V | |
| Component description for the variable intake manifold switchover valve | GF09.20-P-6001V | |
| Component description for the intake manifold tumble flap switchover valve | GF07.05-P-6030V | |
| Component description for the hot film MAF sensor | GF07.07-P-6000V | |
| Component description for the accelerator pedal sensor | GF30.20-P-2010V | |
| Component description for the throttle valve actuator | GF30.20-P-2020V | |
| Component description for the position sensor tumble flap | GF07.04-P-6230V | |
| Component description for an O2 sensor | O2 sensors upstream of TWC | GF07.04-P-6100V |
| O2 sensors downstream of TWC | GF07.04-P-6100VA | |
| Component description for the knock sensor | GF07.04-P-6030V | |
| Component description for the camshaft solenoid | GF05.20-P-2100V | |
| Component description for fuel injection valves | GF07.03-P-6010V |
