Component description for the crankshaft Hall sensor - GF07.04-P-6220V

ENGINES 273.961 in MODEL 216, 221 up to Model Year 08 /modification year 07

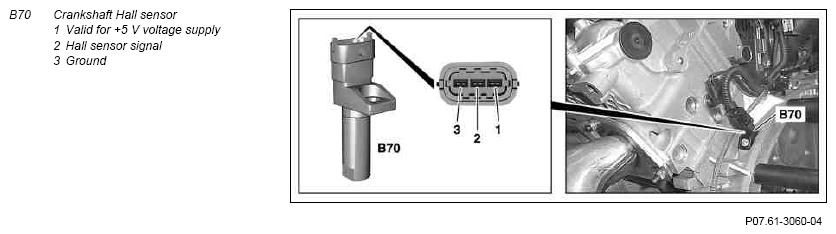

Fig 1: Identifying Crankshaft Hall Sensor And Terminals

Courtesy of MERCEDES-BENZ USA

Location

The crankshaft Hall sensor is located behind the left cylinder bank.

Task

It detects the engine speed and the crankshaft position by scanning a perforated plate welded to the starter ring gear (incremental wheel).

Design

Hall sensor in plastic housing with 3-pole plug connection, distance from the increment wheel 0.3 to 1.3 mm.

Fig 2: Identifying Crankshaft Hall Sensor And Increment Wheel

Courtesy of MERCEDES-BENZ USA

Function

The crankshaft Hall sensor scans the increment wheel at the starter ring gear. The increment wheel has 58 links and a gap, at which two links are missing (60-2).

Each 4 mm wide link generates a signal change at the crankshaft Hall sensor. The signal changes in the link center from around 5 V to around 0 V (negative signal edge).

No signal change takes place at the gap with the 2 missing links. The ME-SFI [ME] control unit detects the TDC position of cylinder 1 with the 2nd negative flank after the gap.

In the ignition TDC of cylinder 1, the signals from the camshaft Hall sensor are also "LOW".

Only the negative signal edge of the crankshaft Hall sensor signal is ever evaluated. For example, for a frequency measurement, the gap between two negative edges must be measured.

The rising negative edge of the signals occurs when a window is located opposite the crankshaft Hall sensor (no material). At the wide gap in particular, the signal fluctuates greatly and is therefore not used.

Shown on engine 272

Fig 3: Crankshaft Hall Sensor Timing Chart

Courtesy of MERCEDES-BENZ USA

Shown on engine 273

Fig 4: Crankshaft Hall Sensor Timing Chart

Courtesy of MERCEDES-BENZ USA
