Measure propeller shaft alignment with electronic propeller shaft inclinometer - AR41.10-P-0086SX

MODEL 216.3, 221.0 /1 2-piece propeller shaft

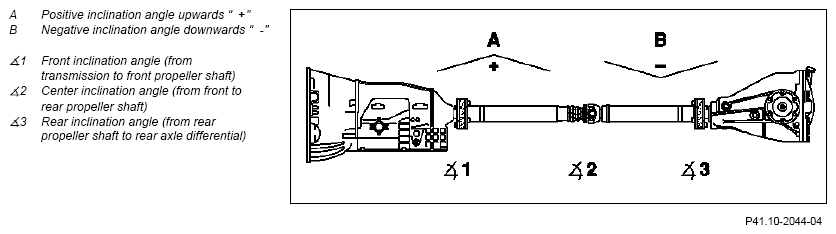

Fig 1: Identifying Propeller Shaft Positive And Negative Inclination Angle

Courtesy of MERCEDES-BENZ USA

	Measure
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
		The vehicle must be on its wheels for the measurement.
		The transmission mounts and exhaust system must not be stressed during the inclination angle measurement If necessary, relieve the stress in the transmission mounts/ exhaust system. To relieve the stress in the transmission mounts, loosen the left and right engine mount as well as the rear engine crossmember, align and tighten again.
		On vehicles which are the subject of complaint on account of driveline vibrations or roughness when accelerating, the cause may be a deviation of the articulation angle from the specified value.
1.1	Drive the vehicle onto a suitable pit and secure using the parking brake
1.2	Drive vehicle onto a measuring lifting platform, secure with the parking brake and lift up
2	Detach lower engine compartment paneling from transmission	Vehicles without code (Z07) Top protection	AR61.20-P-1105SX
2	Detach lower engine compartment paneling from transmission	Vehicles with code (Z07) Top protection	AR61.20-P-1105SXS
3	Prepare articulation angle meter	The following measurement can be carried out using two different measuring instruments. Electronic propeller shaft inclinometer, electronic combination measuring instrument	AR41.10-P-0086-02P
4	Check articulation angle meter, adjust if necessary	To check and adjust, see equipment operator's manual.
5	Measure angle at transmission		AR41.10-P-0085-01SX
6	Measure angle at front and rear propeller shaft		AR41.10-P-0085-02SX
7	Measure angle at rear axle differential (rear axle housing)		AR41.10-P-0085-03T
8	Read out all articulation angles (∠1, ∠2, ∠3) from the memory of the articulation angle meter		AR41.10-P-0086-01R
			*BE41.10-P-1001-01F
			*BE41.10-P-1002-01F
			*BE41.10-P-1003-01F
	Data Sheet for Measuring Inclination Angle, Form		OF41.10-P-3000-01A
9	Correct inclination angle (∠1) at transmission	Depending on the measurement result A check measurement must be carried out after each inclination angle correction. Model 216:	AR41.10-P-0086-03T
			*BA22.10-P-1005-03C
			*BA22.10-P-1007-03C
		Model 221:	*BA22.10-P-1005-03D
			*BA22.10-P-1007-03D
10	Correct inclination angle (∠2) at propeller shaft center support bearing	Depending on the measurement result	AR41.10-P-0086-04T
			*BA41.40-P-1001-01E
			*BA62.30-P-1001-01F
11	Correct inclination angle (∠3) at rear axle differential	Depending on the measurement result	AR41.10-P-0086-05SX

CHECK VALUES FOR PROPELLER SHAFT INCLINATION ANGLE

Number	Designation		Model 216.371/373/376/386/394	Model 216.374/377/379
BE41.10-P-1001-01F	Front inclination angle from transmission to front propeller shaft (∠1)	∠°	-0.50 to +0.67	-0.50 to +0.60
BE41.10-P-1002-01F	Center inclination angle from front propeller shaft to rear propeller shaft (∠2)	∠°	+0.17 to +1.00	+0.17 to +1.00
BE41.10-P-1003-01F	Rear inclination angle from rear propeller shaft to rear axle center assembly (∠3)	∠°	-1.00 to -0.17	-1.00 to -0.17

CHECK VALUES FOR PROPELLER SHAFT INCLINATION ANGLE

Number	Designation		Model 221.00/022/026/028/054/056/057/070/071/073/08/09/10/122/126/128/170/171/173/176/180/183/184/186/194	Model 221.074/077/174/177/179
BE41.10-P-1001-01F	Front inclination angle from transmission to front propeller shaft (∠1)	∠°	-0.50 to +0.67	-0.50 to +0.60
BE41.10-P-1002-01F	Center inclination angle from front propeller shaft to rear propeller shaft (∠2)	∠°	+0.17 to +1.00	+0.17 to +1.00
BE41.10-P-1003-01F	Rear inclination angle from rear propeller shaft to rear axle center assembly (∠3)	∠°	-1.00 to -0.17	-1.00 to -0.17

ENGINE SUSPENSION, ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation		Model 216.371/373/374/376/377/379
BA22.10-P-1005-03C	Bolt, rear engine mount to rear engine crossmember	Nm	28
BA22.10-P-1007-03C	Bolt, rear engine crossmember to body	Nm	45

ENGINE SUSPENSION, ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation		Model 216.386/394
BA22.10-P-1005-03C	Bolt, rear engine mount to rear engine crossmember	Nm	28
BA22.10-P-1007-03C	Bolt, rear engine crossmember to body	Nm	45

ENGINE SUSPENSION, ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation		Model 221.02/05/07/095/12/15/17/195	Model 221.08/094/18/194
BA22.10-P-1005-03D	Bolt, rear engine mount to rear engine crossmember	Nm	28	28
BA22.10-P-1007-03D	Bolt, rear engine crossmember to body	Nm	45	45

ENGINE SUSPENSION, ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation		Model 221.003/103
BA22.10-P-1005-03D	Bolt, rear engine mount to rear engine crossmember	Nm	28
BA22.10-P-1007-03D	Bolt, rear engine crossmember to body	Nm	45

PROPELLER SHAFT CENTER SUPPORT BEARING

Number	Designation			Model 216	Model 221
BA41.40-P-1001-01E	Bolt, propeller shaft center support bearing to frame floor assembly	Self-tapping screw	Nm	25	25
BA41.40-P-1001-01E		Bolt with washer	Nm	-	30

CROSSMEMBER AND FRONT REINFORCEMENT

Number	Designation		Model 216	Model 221
BA62.30-P-1001-01F	Bolt, cross member to transmission tunnel	Nm	25	25
