Prepare rear crossmember for installation. - AR64.20-P-1100-02SX

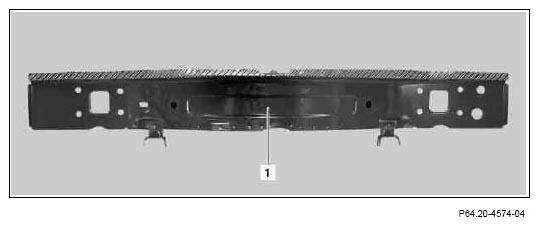

Fig 1: Identifying Grinding Surfaces On Rear Crossmember In Cross-Hatched Areas (1 Of 3)

Courtesy of MERCEDES-BENZ USA

Grind mating surfaces on rear crossmember (1) down to bare metal in cross-hatched areas with stainless steel round wire brush.
Observe preliminary treatment of surfaces to be bonded.
Grind mating surfaces on rear crossmember (1) down to bare metal in cross-hatched areas with stainless steel round wire brush.
Observe preliminary treatment of surfaces to be bonded.

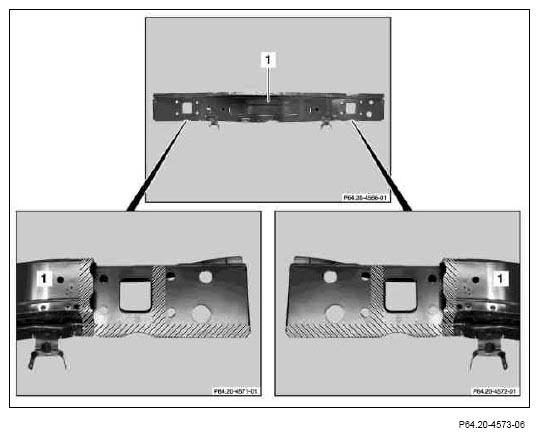

Fig 2: Identifying Grinding Surfaces On Rear Crossmember In Cross-Hatched Areas (2 Of 3)
Courtesy of MERCEDES-BENZ USA
Grind mating surfaces on rear crossmember (1) down to bare metal in cross-hatched areas with stainless steel round wire brush.
Observe preliminary treatment of surfaces to be bonded.

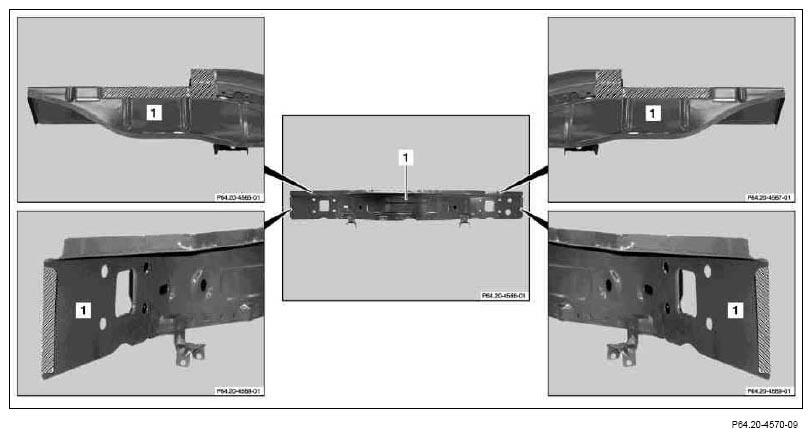

Fig 3: Identifying Grinding Surfaces On Rear Crossmember In Cross-Hatched Areas (3 Of 3)

Courtesy of MERCEDES-BENZ USA
