Install crossmember and weld in - AR64.20-P-1060-03SX

REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1092-02A Adhesive kit, body, 2-component adhesive A 009 989 36 71
BR00.45-Z-1001-13A Blind rivet 6.4 X14 A 003 990 35 97
BR00.45-Z-1002-13A Polygrip countersunk head rivet, 6.4 X14 A 003 990 86 97 05
  1. Install rear crossmember (1), fit and fasten with COMMERCIALLY AVAILABLE TOOLS clamping pliers.
  2. Install straightening tool (2) on straightening bench.
  3. Fasten straightening tool (2) to rear crossmember (1).

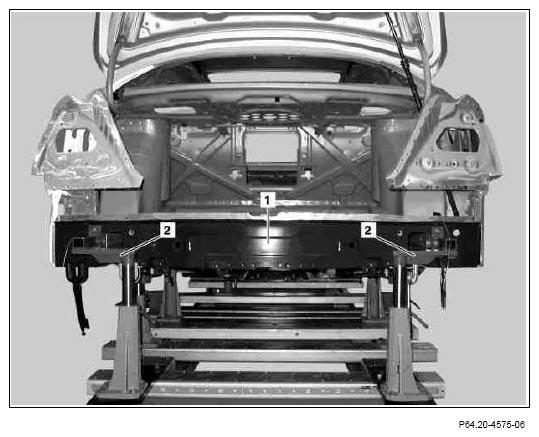

    Fig 1: Identifying Straightening Tool To Rear Crossmember
    G07321205Courtesy of MERCEDES-BENZ USA

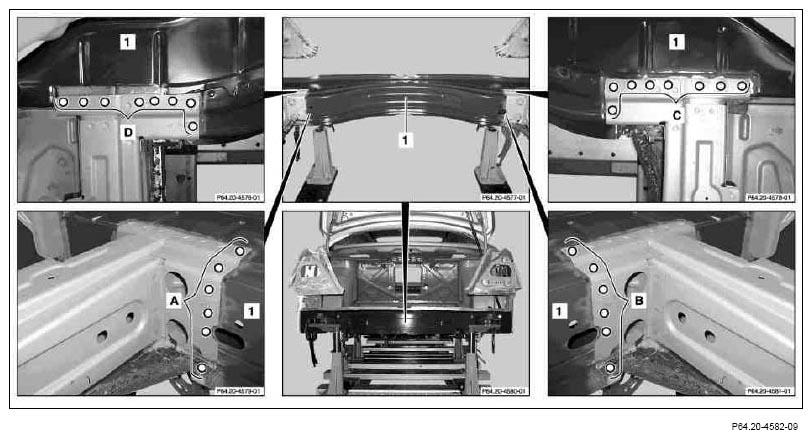

    Fig 2: Identifying Rivet Holes In Rear Crossmember Areas (A, B, C And D)
    G07321206Courtesy of MERCEDES-BENZ USA
  4. Drill dia. 6.5 mm rivet holes in rear crossmember (1) (areas A, B, C and D).

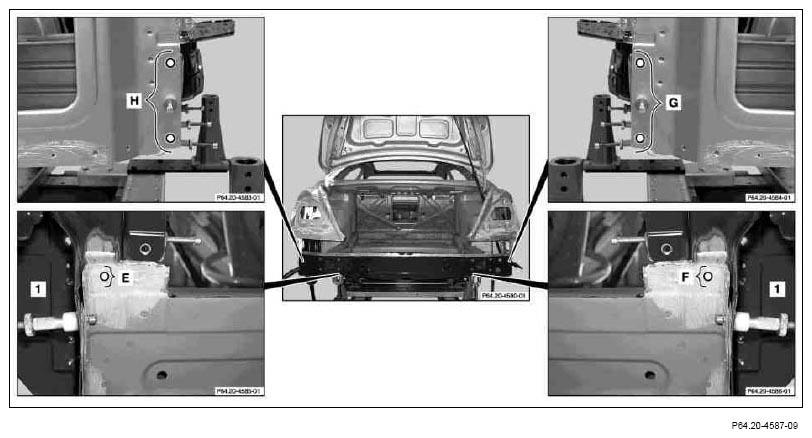

    Fig 3: Identifying Rivet Holes In Rear Crossmember Areas (E, F, G And H)
    G07321207Courtesy of MERCEDES-BENZ USA
  5. Drill dia. 6.5 mm rivet holes in rear crossmember (1) (areas E, F, G and H).

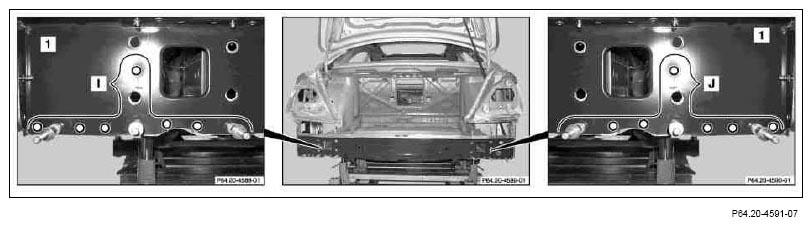

    Fig 4: Identifying Rivet Holes In Rear Crossmember Areas (I And J)
    G07321208Courtesy of MERCEDES-BENZ USA
  6. Drill dia. 6.5 mm rivet holes in rear crossmember (1) (areas I and J).
  7. Countersink rivet holes (areas I and J).
  8. Remove rear crossmember (1).
  9. Deburr rivet holes on both sides

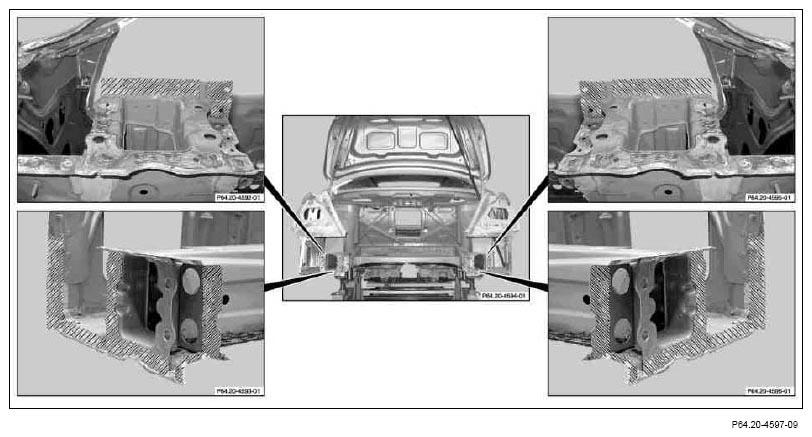

    Fig 5: Identifying 2-Component Adhesive To Rear Crossmember (1) Cross-Hatched Areas
    G07321209Courtesy of MERCEDES-BENZ USA
  10. Apply 2-component adhesive to rear crossmember (1) in crosshatched areas.

    IMPORTANT Observe pretreatment of bonding surfaces.

    IMPORTANT Refer to manufacturer specifications for adhesive curing and application times.

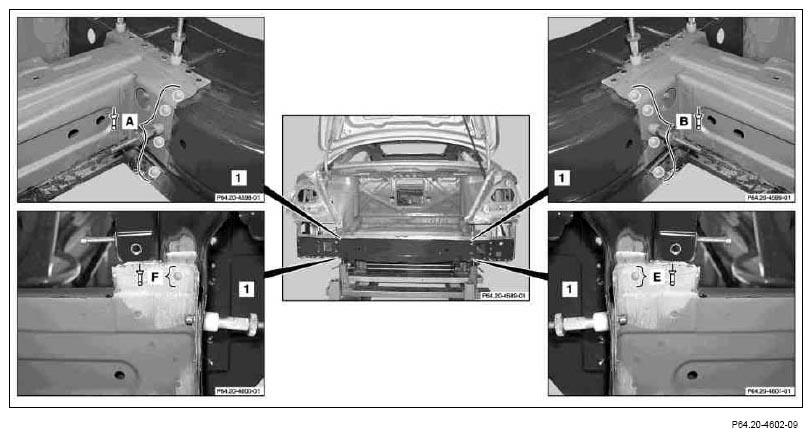

    Fig 6: Identifying Rivet Areas On Rear Crossmember (A, B, E And F)
    G07321210Courtesy of MERCEDES-BENZ USA
  11. Install rear crossmember (1) and fasten with COMMERCIALLY AVAILABLE TOOLS manual temporary fasteners.
  12. Rivet rear crossmember (1) with Polygrip flat/round head rivet, dia. 6.4X14 (areas A, B, E and F).

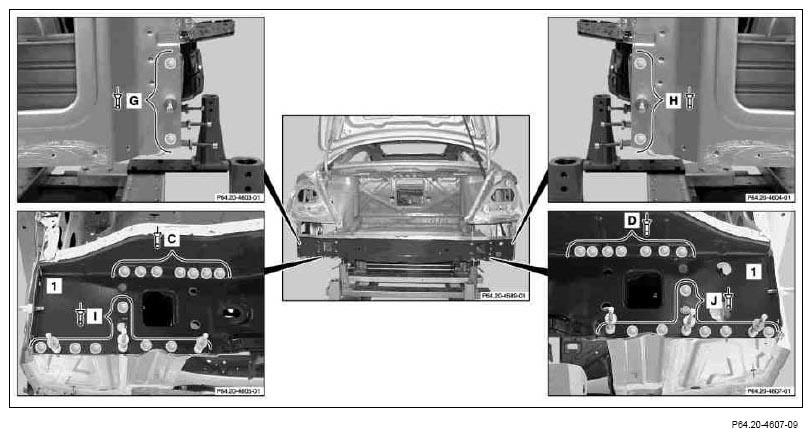

    Fig 7: Identifying Rivet Areas On Rear Crossmember (C, D, G, H, I And J)
    G07321211Courtesy of MERCEDES-BENZ USA
  13. Rivet rear crossmember (1) with Polygrip flat/round head rivet, dia. 6.4X14 (areas G and H).
  14. Rivet rear crossmember (1) with Polygrip flat/round head rivet, dia. 6.4X14 from outside (areas C and D).
  15. Rivet rear crossmember (1) with Polygrip countersunk head rivet, dia. 6.4X14 (areas I and J).
