Remove/install rear side window - AR67.30-P-4000SC

MODEL 216.3

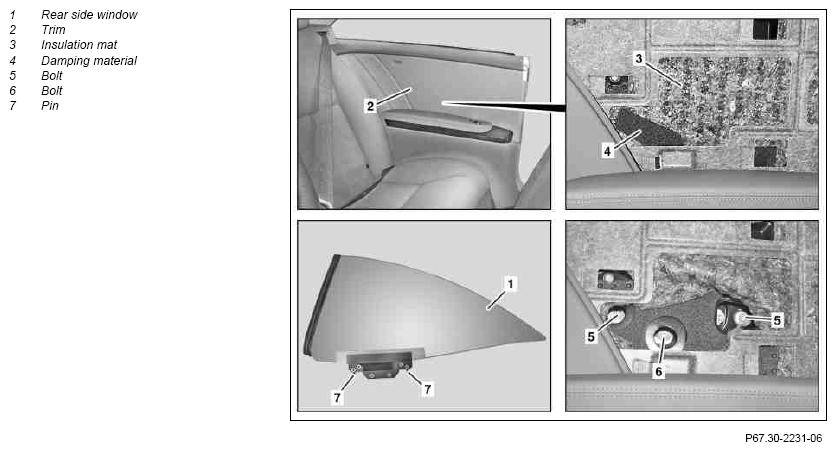

Fig 1: Identifying Rear Side Window Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Removing
1	Remove paneling (2) on left and right side paneling in rear.		see AR68.30-P-4780SC
2	Pull damping mat to side (3) and expose damping material (4) in area shown.
3	Separate prepunched covers from damping material (4).
4	Lower rear side window (1).
5	Loosen outer section of sealing rail from side wall.	It is not necessary to remove rear side paneling.	see AR67.30-P-4070SC
6	Mask off upper edge of side wall and trim strip with suitable textile adhesive tape.
7	Raise rear side window (1) until bolts (5, 6) above access opening are accessible.
8	Unscrew bolts (5, 6)	Secure bolts (5, 6) against falling down.
9	Carefully remove rear side window (1) from side wall.	Carefully remove rear side window (1) to prevent damaging rear side window (1).
	Install
10	Insert rear side window (1) into mounts on power window and screw in bolts (5, 6) up to stop.	Carefully install rear side window (1) in side wall to prevent damaging rear side window (1). The pins (7) should be seated in the corresponding cutouts in the mounts on the power window.
11	Install outer section of side wall sealing rail.		see AR67.30-P-4070SC
12	Adjust rear side window (1).		see AR67.30-P-4200SC
