Remove/install rear side window sealing rail - AR67.30-P-4070SC

MODEL 216.3

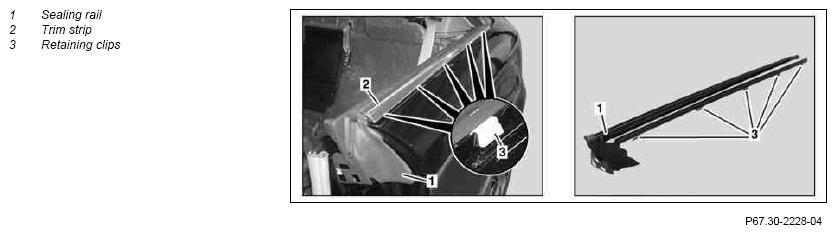

Fig 1: Identifying Rear Side Window Sealing Rail Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Lower left and right rear side window
2	Unclip trim strip (2) from sealing rail (1).	Carefully unclip trim strip (2) to prevent deformation requiring replacement.
			Fig 2
3	Remove rear passenger compartment side trim panel		see AR68.30-P-4780SC
4	Press off outer section of sealing rail (1) from retaining clips (3) on side wall and inner section on sealing rail (1) from inner panel reinforcement.	Carefully press off sealing rail (1) to prevent deformation requiring replacement.
			Fig 2
5	Detach sealing rail (1) in front area from side wall and remove.	Installation:  The bonding surface must be absolutely free of grease and dust, otherwise penetrating moisture can lead to corrosion damage. Completely remove adhesive residues from side wall. Removal disk, 100 mm dia. with fixing shank, Firma 3M Deutschland GmbH D-41453 Neuss Drill (electric/pneumatic)
		Cleaner	see *BR00.45-Z-1025-04A
	Notes on removing glue residues and foils on paint and metal surfaces with eraser disc		see AH00.00-P-0013-01AK
6.1	Unclip retaining clips (3) from sealing rail (1).	When replacing sealing rail (1).
7.1	Clean bonding surface on sealing rail (1), apply primer and attach new adhesive tape on sealing rail (1).	When reusing sealing rail (1). Bonding surface must be free of grease and dust Observe drying time of primer
		Primer	see *BR00.45-Z-1044-07A
		Adhesive tape	see *BR00.45-Z-1099-02A
8	Install in the reverse order

Fig 2: Identifying Wedge Tool (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1099-02A	Adhesive tape/Acrylic Plus PT 1100	A 008 989 20 85
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71
BR00.45-Z-1044-07A	Primer	-
