Disassemble/assemble suspension strut - AR32.25-P-1018CW: Notes
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 172, 204, 207
MODEL 212, 218 except CODE (489) AIRMATIC (air suspension with continuous damper adjustment)
| Removing | |||
|---|---|---|---|
| Risk of injury caused by pinching or crushing when working on springs or spring bodies that are under tension | Use only approved tensioning devices; shield off hazard area if necessary. Inspect special tools for damage and proper operation (visual inspection). Wear protective gloves. |
AS00.00-Z-0001-01A | |

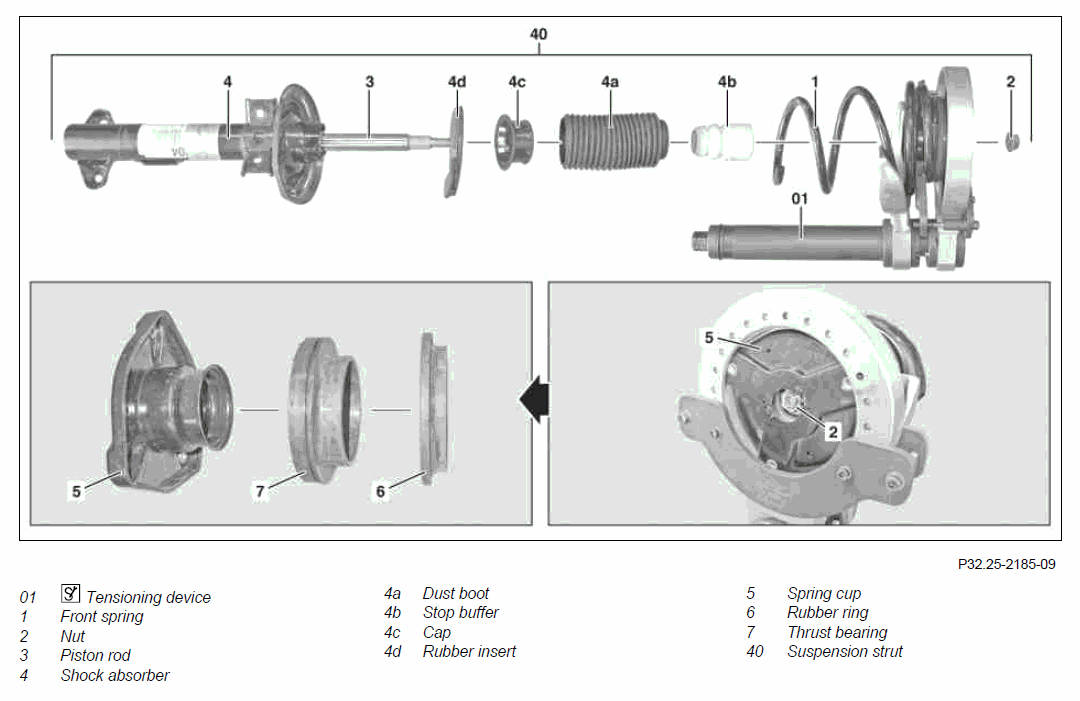

| 1 | Remove suspension strut (40) | AR32.25-P-1017CW | |
| Disassembling/assembling | |||
| 2 | Clamp tensioning device (01) in vise, insert clamping plates and tension front spring (1) | AR32.20-P-0200-05CW | |
| Fig 4 | |||
| Fig 3 | |||
| Fig 2 | |||
| 3 | Unscrew nut (2) from piston rod (3) | *BA32.25-P-1004-04M | |
| 4 | Remove shock absorber (4) from tensioning device (01) | ||
| 5 | Remove dust boot (4a), stop buffer (4b), cap (4c) and rubber insert (4d) | If replacing the damper (4). | |
| 6 | Release front spring (1) | ||
| Tensioning device | Fig 4 | ||
| Fig 3 | |||
| Fig 2 | |||
| 7 | Remove front spring (1) | Installation: Observe installation position of front spring (1). The front spring (1) must be installed with the flat side of the coil towards the spring cup (5). | |
| 8 | Remove the spring cup (5) from the front spring (1) | ||
| 9 | Using a suitable tool pry rubber ring (6) off the thrust bearing (7) | When replacing the rubber ring (6). | |
| 10 | Using a suitable tool pry thrust bearing (7) off the spring cup (5) |
When replacing the thrust bearing (7). | |
| 11 | Check shock absorber (4) | A light oil film on the piston rod (3) is acceptable. | AR32.25-P-0121CW |
| Dispose of shock absorber (4) in the event of more severe leakage: | OS32.25-P-0121-01GC | ||
| 12 | Assemble in the reverse order | ||
| Installing | |||
| 13 | Install suspension strut (40) | AR32.25-P-1017CW | |
| 14 | Perform wheel alignment check | AR40.20-P-0200CW |
SUSPENSION STRUTS
| Number | Designation | Model 204.00/02/04/05/06/20/22/24/25/ 30/33/34/35 without code 483 | Model 204.00/02/04/05/06/20/22/24/25 with code 483, model 204.077/277/ 377 | ||
|---|---|---|---|---|---|
| BA32.25-P-1004-04M | Nut to piston rod | Nm | 100 | 85 | |
