Replace brake hoses - AR42.10-P-0013CW
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204
Rear brake hose

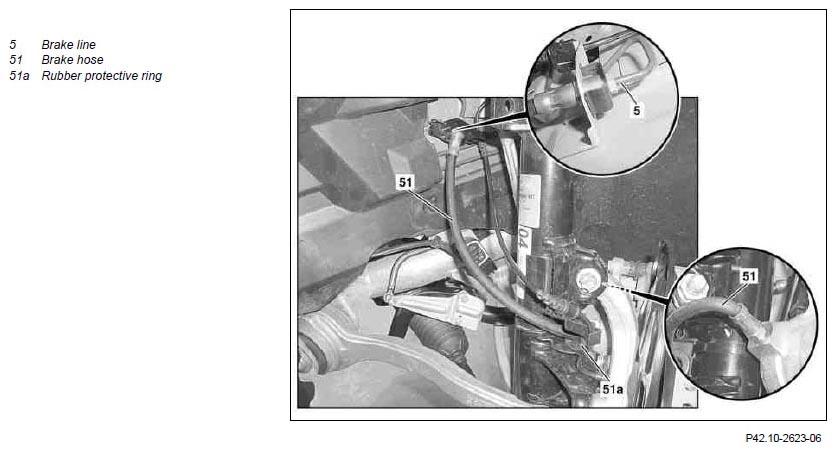

Front brake hose, model 204.0/2/3
| Remove/install | |||
| Risk of poisoning caused by swallowing brake fluid. Risk of injury caused by brake fluid coming into contact with skin and eyes. | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Brake fluid notes | AH42.50-P-0001-01A | ||
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Notes on installing brake hoses | AH42.10-P-9406-01A | ||
| 1 | Remove wheel. | ||
| Remove/install wheels, rotate if necessary | AP40.10-P-4050CW | ||
| 2 | Detach brake line (5) from brake hose (51) | ||
| Fig 3 | |||
| *BA42.10-P-1001-04L | |||
| 3 | Guide brake hose (51) through the rubber protective ring (51a) | Model 204.0/2/3 on front axle | |
| 4 | Detach brake hose (51) from brake caliper and remove | Fig 4 | |
| Fig 3 | |||
| *BA42.10-P-1002-04L | |||
| 5 | Install in the reverse order | ||
| 6 | Bleed brake system | AR42.10-P-0010CW | |
| 7 | Check brake system for leaks | AR42.10-P-0100-01V |
BRAKE LINES, BRAKE HOSES
| Number | Designation | Model 204 | |
|---|---|---|---|
| BA42.10-P-1001-04L | Union nut, brake line to brake hose | Nm | 18 |
| BA42.10-P-1002-04L | Brake hose to fixed or floating caliper | Nm | 18 |
