Remove/install rear brake control cable - AR42.20-P-0525CW
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| 1 | Remove brake disc | Model 204 without engine 156 | AR42.10-P-0250CW |
| 2 | Remove brake shoes of parking brake | AR42.20-P-0530CW | |

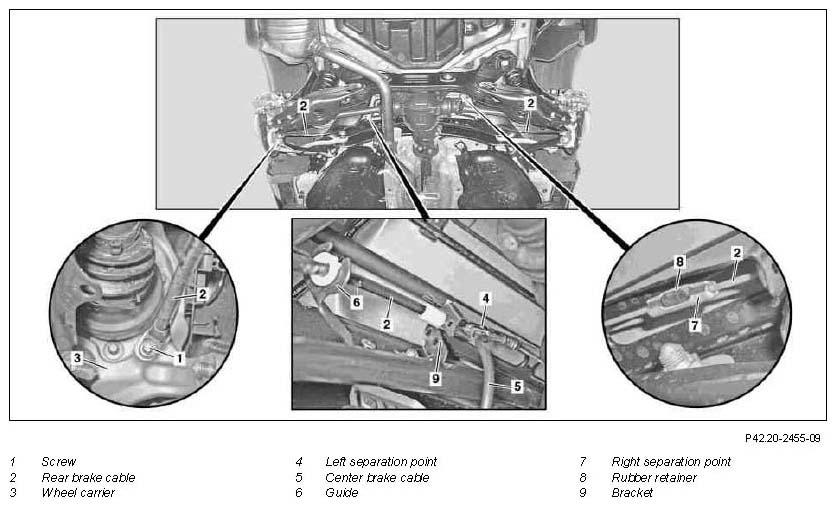

| 3 | Remove bolt (1) and pull out rear brake cable (2) from wheel carrier (3) (on right and left) | *BA42.20-P-1002-01L | |
| 4 | Unhook rear brake cable (2) from left separate point (4) on center brake cable (5) | ||
| 5 | Remove rubber retainer (8) from right separation point (7) | ||
| 6 | Unhook rear brake cable (2) from right separation point (7) | ||
| 7 | Unclip rear brake cable (2) from bracket (9) (on right and left) | Figure | |
| 8 | Unhook rear brake cable (2) from guide (6) on rear axle carrier and remove (on right and left) | ||
| 9 | Install in the reverse order | ||
| 10 | Adjust parking brake | AR42.20-P-0540CW |
PARKING BRAKE
| Number | Designation | Model 204 | |
|---|---|---|---|
| BA42.20-P-1002-01L | Self-locking bolt, brake cable at rear wheel carrier | Nm | 12 |
