Adjust parking brake - AR42.20-P-0540CW
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204
| Adjust | |||
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| 1 | Release parking brake | ||
| 2 | Remove rear wheels | AP40.10-P-4050CW | |

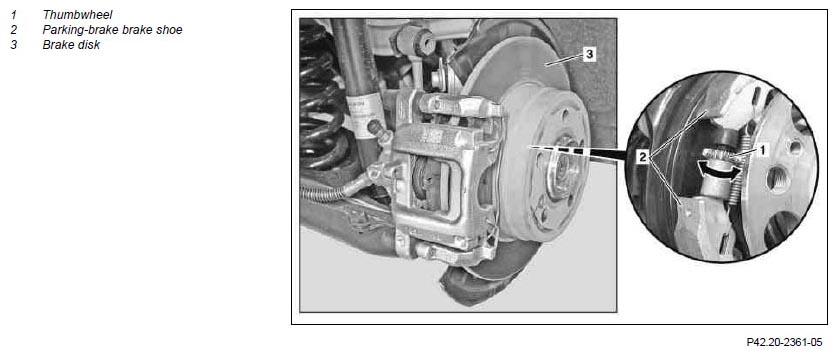

| 3 | Using a screwdriver turn the right and left adjustment wheel (1) until the brake shoes (2) abut the drums | Turn the right adjustment wheel (1) against the direction of travel. Turn the left-hand adjusting wheel (1) in the direction of travel. |
|
| Checking | |||
| 4 | Check brake disks (3) for locking by turning manually | ||
| 5 | Release the left-hand and right-hand adjusting wheel (1) | *BE42.20-P-1001-01I | |
| 6 | Check brake disks (3) for unobstructed movement | ||
| 7 | Operate parking brake | ||
| 8 | Check brake disks (3) for locking by turning manually | ||
| 9 | Release parking brake | ||
| 10 | Check brake disks (3) for unobstructed movement | ||
| 11 | Fit rear wheels | AP40.10-P-4050CW | |
| 12 | Lower vehicle | ||
| 13 | Carry out brake test on the test stand | AP42.00-P-4290BA |
ADJUSTMENT VALUES FOR PARKING BRAKE
| Number | Designation | Model 204 | |
|---|---|---|---|
| BE42.20-P-1001-01I | Number of teeth by which adjusting wheel of adjusting mechanism must be loosened after the parking brake shoes make contact. | Number of teeth | 8 |
