Remove/install pulse ring - AR42.30-P-0715A
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 129, 140, 170, 171, 172, 202, 203, 204, 207, 208, 209, 210, 211, 212, 215, 216, 218, 219, 220, 221, 230, 231
| Removing | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| 1 | Remove rear axle shaft | Model 204, 207 | AR35.30-P-0620CW |

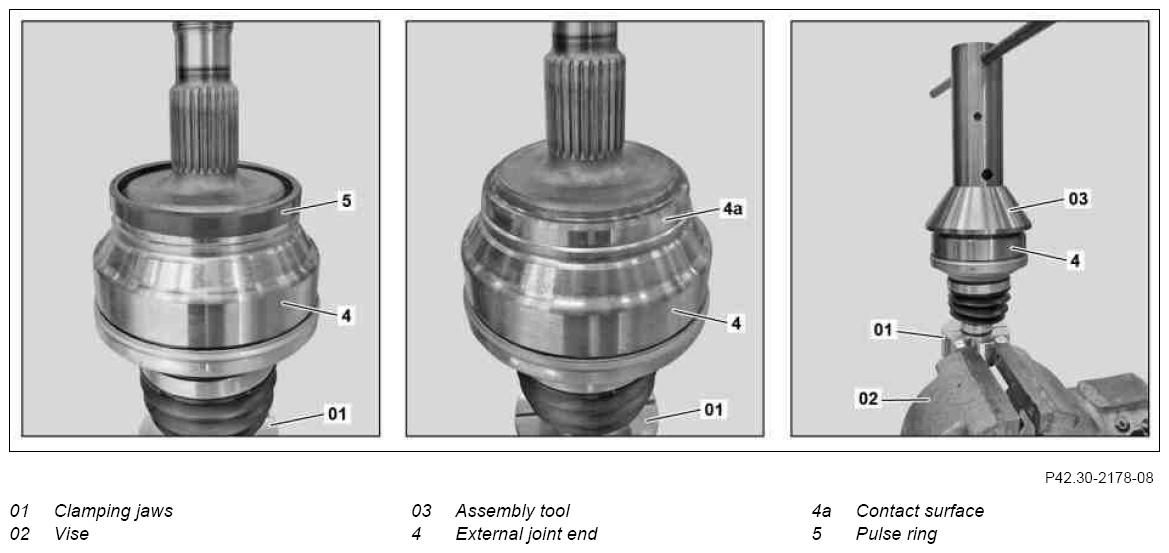

| 2 | Clamp rear axle shaft using clamping jaws (01) into vise (02) | *220589023100 | |
| 3 | Remove pulse ring (5) using suitable tool from external joint end (4) of rear axle shaft | ||
| Clean | |||
| 4 | Clean contact surface (4a) of pulse ring (5) on external joint end (4) of rear axle shaft | ||
| Install | |||
| 5 | Mount pulse ring (5) using assembly tool (03) to external joint end (4) of rear axle shaft | The pulse ring (5) must not be knocked on. This will destroy the pulse ring (5). |
|
| Loctite 603 adhesive | *BR00.45-Z-1014-02B | ||
| *211589006100 | |||
| 6 | Remove rear axle shaft from vise (02) and detach clamping jaws (01) | *220589023100 | |
| 7 | Install rear axle shaft | Model 204, 207 | AR35.30-P-0620CW |
| 8 | Read out fault memory with STAR DIAGNOSIS and erase if necessary | AD00.00-P-2000-04A |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1014-02B | Loctite 603 adhesive | A 007 989 29 71 |
