Remove/install parking brake pedal assembly - AR42.20-P-0510CW
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204
| Remove/install | |||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| 1 | Remove left cover below dashboard | ||

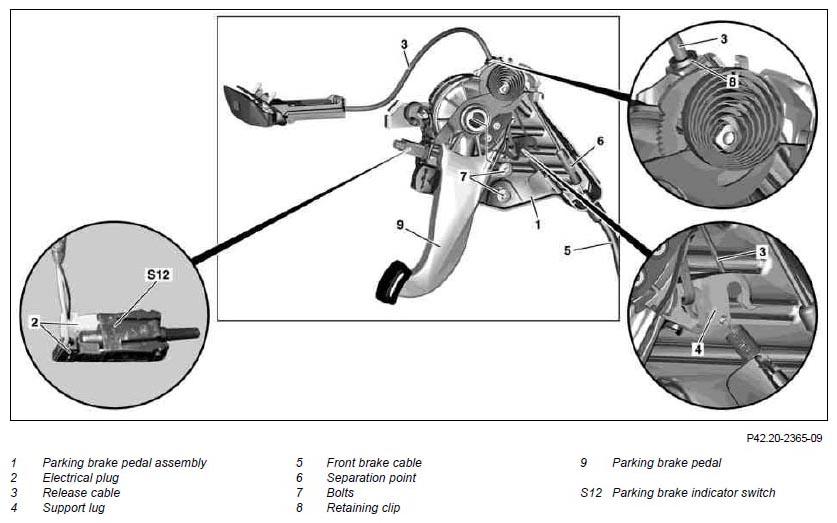

| 2 | Remove cover from pedal assembly (1) | ||
| 3 | Detach electrical plug (2) from indicator switch (S12) | ||
| 4 | Unhook release cable (3) from support lug (4) | ||
| 5 | Press separation point (6) on pedal assembly (1) downwards using assembly tool and unhook front brake cable (5) | ||
| Fig 3 | |||
| 6 | Remove bolts (7) | *BA42.20-P-1001-01L | |
| 7 | Unhook front brake cable (5) from tensioning shackle of pedal assembly (1) | Fig 2 | |
| 8 | Remove retaining clip (8) for release cable (3) and remove pedal assembly (1) | ||
| 9 | Remove indicator switch (S12) | Only when replacing the pedal system (1) | |
| 10 | Install in the reverse order | ||
| 11 | Operate parking brake pedal (9) several times in succession | ||
| Checking | |||
| 12 | Check pedal travel on parking brake pedal (9) | ||
| Adjusting parking brake. | AR42.20-P-0540CW |
PARKING BRAKE
| Number | Designation | Model 204 | |
|---|---|---|---|
| BA42.20-P-1001-01L | Bolt, foot-operated parking brake pedal assembly at front wall pillar | Nm | 17 |
