Bleed brake system - AR42.10-P-0010CW: Notes
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204

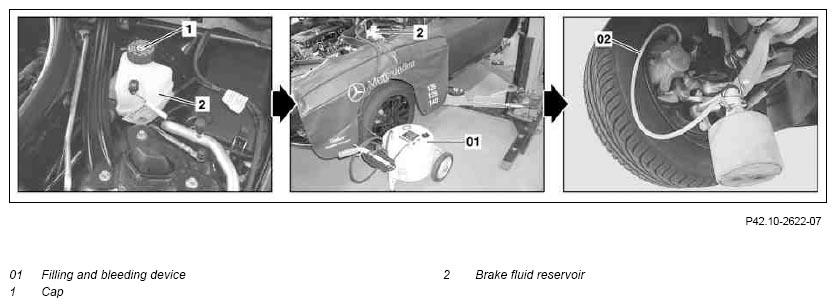

shows model 166, 172, 204
| Remove/install | |||
| Risk of poisoning caused by swallowing brake fluid. Risk of injury caused by brake fluid coming into contact with skin and eyes. | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Risk of injury to skin and eyes caused by handling hot or glowing objects. | Wear safety gloves, protective clothing and safety glasses, if necessary. | AS42.50-Z-0001-01A | |
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Brake fluid notes | AH42.50-P-0001-01A | ||
| 1 | Open engine hood and raise to vertical position | ||
| Clean | |||
| 2 | Clean area around cap (1) on brake fluid reservoir (2) | LU cleaner | *BR00.45-Z-1028-94A |
| 3 | Unscrew cap (1) on brake fluid reservoir (2) | ||
| 4 | Fill new brake fluid up to the "MAX" mark in the brake fluid reservoir (2) | *BF42.10-P-1001-01J | |
| 5 | Connect filling and bleeding unit (01) onto brake fluid reservoir (2) and switch on | ||
| 6 | Carrying out bleeding operation | Model 204 | AR42.10-P-0010-02CW |
| *BA42.10-P-1002-12J | |||
| *BA42.10-P-1003-10J | |||
| *BA25.20-P-1001-01B | |||
| 7 | Install in the reverse order | ||
| Checking | |||
| 8 | Check brake system for leaks | Model 172, 204 | AR42.10-P-0100-01V |
| 9 | Correct fluid level in brake fluid reservoir (2) | Model 204 | AP42.10-P-4210CW |
| 10 | Close engine hood |
REAR AXLE BRAKE CALIPER
| Number | Designation | Model 204 except model 204.077/277/377 | |
|---|---|---|---|
| BA42.10-P-1002-12J | Bleed screw to brake caliper | Nm | 14 |
FRONT AXLE BRAKE CALIPER
| Number | Designation | Model 204 except model 204.077/277/377/9 | |
|---|---|---|---|
| BA42.10-P-1003-10J | Bleed screw to brake caliper | Nm | 14 |
CLUTCH OPERATING MECHANISM
| Number | Designation | Transmission 716.6 | |
|---|---|---|---|
| BA25.00-P-1001-01B | Bleed screw to central clutch operation | Nm | 9 |
BRAKE FLUID
| Number | Designation | Model 204 | ||
|---|---|---|---|---|
| BF42.10-P-1001-01J | Brake fluid | Filling capacity | Liters | ≈0.5 |
| Specifications for Operating Fluids | Sheet | BB00.40-P-0330-01A | ||
| Sheet | BB00.40-P-0331-00A | |||
REPAIR MATERIALS
| Number | Designation |
|---|---|
| BR00.45-Z-1028-04A | LU cleaner |
