Replace brake fluid - AP42.00-P-4280CW
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of poisoning caused by swallowing brake fluid. Risk of injury caused by brake fluid coming into contact with skin and eyes. | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Risk of injury to skin and eyes caused by handling hot or glowing objects. | Wear safety gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Brake fluid notes | AH42.50-P-0001-01A | ||
| Clean | |||

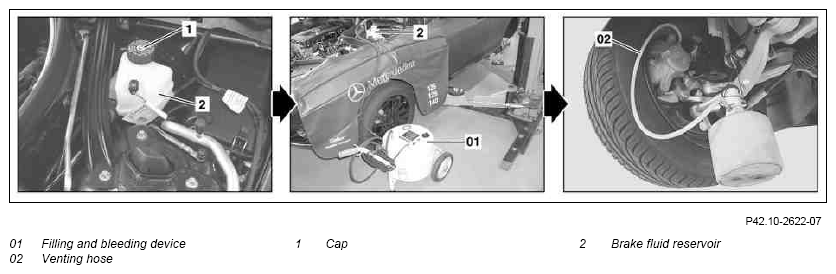

| 1 | Clean cap (1) and brake fluid reservoir (2) | ||
| 2 | Unscrew cap (1). | ||
| 3 | Suction off brake fluid from the brake fluid reservoir (2) | ||
| 4 | Fill with new brake fluid up to the "MAX" mark in the brake fluid reservoir (2) | *BF42.10-P-1001-01J | |
| 5 | Connect filling and bleeding unit (01) onto brake fluid reservoir (2) and switch on | ||
| 6 | Allow brake fluid to flow out of the bleed screws | ||
| Bleed the system. | AR42.10-P-0010-02CW | ||
| *BA42.10-P-1003-10J | |||
| *BA42.10-P-1002-12J | |||
| *BA25.20-P-1001-01B | |||
| 7 | Install in the reverse order | ||
| 8 | Correct fluid level in brake fluid reservoir (2) | AP42.10-P-4210CW | |
| Check | |||
| 9 | Check brake system for leaks | AR42.10-P-0100-01V |
CLUTCH OPERATING MECHANISM
| Number | Designation | Transmission 716.6 | |
|---|---|---|---|
| BA25.20-P-1001-01B | Bleed screw to central clutch operator | Nm | 9 |
REAR AXLE BRAKE CALIPER
| Number | Designation | Model 204 except model 204.077/277/377 | |
|---|---|---|---|
| BA42.10-P-1002-12J | Bleed screw to brake caliper | Nm | 14 |
FRONT AXLE BRAKE CALIPER
| Number | Designation | Model 204 except model 204.077/277/377/9 | |
|---|---|---|---|
| BA42.10-P-1003-10J | Bleed screw to brake caliper | Nm | 14 |
BRAKE FLUID
| Number | Designation | Model 204 | ||
|---|---|---|---|---|
| BF42.10-P-1001-01J | Brake fluid | Filling capacity | Liters | ≈0.5 |
| Specifications for Operating Fluids | Sheet | BB00.40-P-0330-01A | ||
| Sheet | BB00.40-P-0331-00A | |||
