Remove/install engine mount or engine crossmember at the rear - AR22.10-P-1180CW
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 271, 272, 276, 642, 646, 651 in MODEL 204
ENGINES 271, 272, 273, 276, 278, 642, 651 in MODEL 207
ENGINES 157, 271, 272, 273, 276, 278, 642, 651 in MODEL 212
ENGINES 157, 276, 278, 642, 651 in MODEL 218
ENGINES 651 in MODEL 221

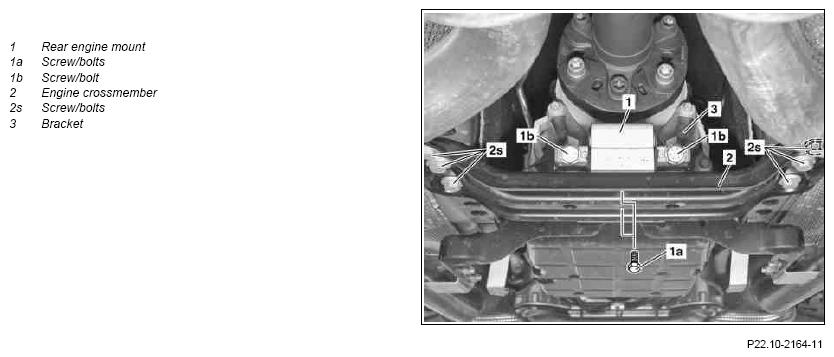

Shown on vehicle without 4

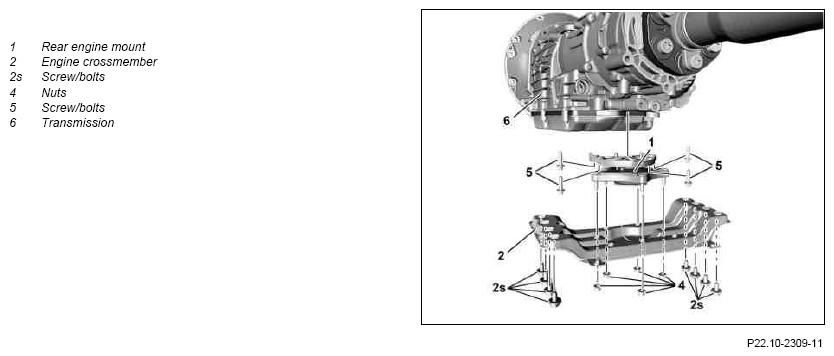

Shown on vehicle with 4MATIC
| Remove/install | ||||
|---|---|---|---|---|
| Risk of death caused by vehicle slipping or tilting of the vehicle off of the vehicle lift. | Align vehicle between vehicle lift columns and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | ||
| Notes on bolted connections with self tapping screws | AH00.00-P-0007-01SF | |||
| 1.1 | Remove both lower engine compartment paneling | Model 204.9 | AR61.20-P-1105CY | |
| 1.2 | Remove engine compartment paneling | Model 207, 212, 218, 204 with gasoline engine except 204.9 | AR61.20-P-1105EW | |
| 1.3 | Remove lower bottom sections of soundproofing or engine compartment paneling downwards | Model 207, 212, 218, 204 with diesel engine except 204.9 | AR94.30-P-5300EW | |
| Model 221 | AR61.20-P-1105SX | |||
| 2.1 | Remove screw/bolts (1a) from rear engine mount (1) | Vehicles without 4MATIC | ||
| *BA22.10-P-1004-03E | ||||
| *BA22.10-P-1005-03D | ||||
| 2.2 | Unscrew nuts (4) of rear engine mount (1) | Vehicles with 4MATIC | ||
| *BA22.10-P-1004-03E | ||||
| 3 | Support transmission (6) with transmission jack | |||
| 4 | Remove screw/bolts (2s) and take off engine crossmember (2) | *BA22.10-P-1005-03E | ||
| *BA22.10-P-1007-03D | ||||
| 5.1 | Remove screw/bolts (1b) from holder (3) and remove rear engine mount (1) | Vehicles without 4MATIC | ||
| *BA22.10-P-1003-03E | ||||
| *BA22.10-P-1004-03D | ||||
| 5.2 | Unscrew screw/bolts (5) from transmission (6) and remove rear engine mount (1) | Vehicles with 4MATIC | ||
| *BA22.10-P-1003-03E | ||||
| 6 | Install in the reverse order | |||
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 204 except 4MATIC | Model 204 4MATIC | Model 207 except 4MATIC | |
|---|---|---|---|---|---|
| BA22.10-P-1003-03E | Screw/bolt connecting rear engine mount to bracket or transmission | Nm | 50 | 28 | 50 |
| BA22.10-P-1004-03E | Rear engine mount on engine support | Nm | 28 | 28 | 28 |
| BA22.10-P-1005-03E | Screw/bolt, rear engine support to frame floor assembly | Nm | 70 | 70 | 70 |
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 207 4MATIC | Model 212 except 4MATIC | Model 212 4MATIC | |
|---|---|---|---|---|---|
| BA22.10-P-1003-03E | Screw/bolt connecting rear engine mount to bracket or transmission | Nm | 28 | 50 | 28 |
| BA22.10-P-1004-03E | Rear engine mount on engine support | Nm | 28 | 28 | 28 |
| BA22.10-P-1005-03E | Screw/bolt, rear engine support to frame floor assembly | Nm | 70 | 70 | 70 |
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 218 4MATIC | Model 218 except 4MATIC | |
|---|---|---|---|---|
| BA22.10-P-1003-03E | Screw/bolt connecting rear engine mount to bracket or transmission | Nm | 28 | 50 |
| BA22.10-P-1004-03E | Rear engine mount on engine support | Nm | 28 | 28 |
| BA22.10-P-1005-03E | Screw/bolt, rear engine support to frame floor assembly | Nm | 70 | 70 |
ENGINE SUSPENSION, ENGINE MOUNTS, ENGINE SUPPORTS
| Number | Designation | Model 221.003/103 | |
|---|---|---|---|
| BA22.10-P-1004-03D | Screw/bolt connecting rear engine mount to transmission bracket | Nm | 50 |
| BA22.10-P-1005-03D | Screw/bolt, rear engine mount to rear engine crossmember | Nm | 28 |
| BA22.10-P-1007-03D | Screw/bolt, rear engine crossmember to body | Nm | 45 |
