Remove/install oil dipstick guide tube - AR18.40-P-3510CV
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 272 in MODEL 204 Vehicle with rear sump
ENGINES 272, 273 in MODEL 207 Vehicles with rear sump
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| 1 | Switch off ignition | ||
| 2 | Open engine hood and raise to vertical position | Model 204 | |
| Model 207 | AR88.40-P-1000EW | ||
| 3 | Remove lower engine compartment paneling | Model 204 |
|
| Model 207 | AR61.20-P-1105EW | ||
| 4 | Drain engine oil | ||
| Engine oil change and filter change | Model 204 | AP18.00-P-0101CWZ | |
| Model 207 | AP18.00-P-0101EW | ||

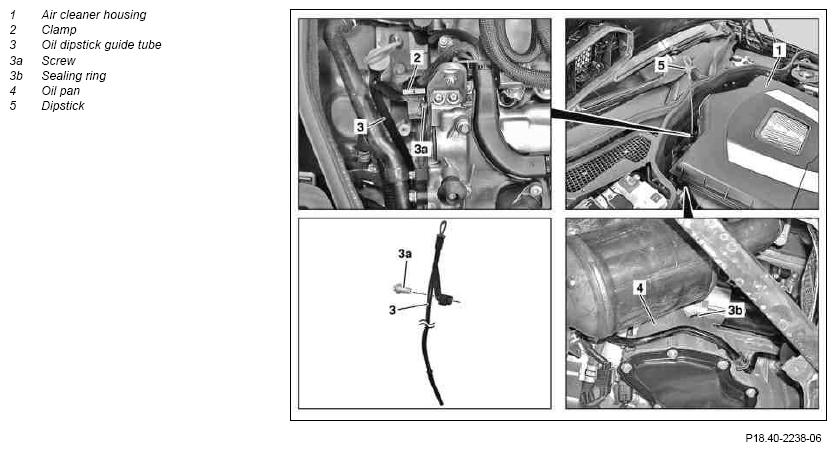

| 5 | Remove air filter housing (1). | AR09.10-P-1150CV | |
| 6 | Pry out clamp (2) from oil dipstick guide tube (3) | ||
| 7 | Remove bolt (3a) and pull oil dipstick guide tube (3) up and out of oil pan (4) | ||
| *BA01.45-P-1006-01M | |||
| 8 | Replace sealing ring (3b) in oil pan (4) | ||
| 9 | Install in the reverse order | ||
| Checking | |||
| 10 | Check engine oil level; correct if necessary | ||
| Engine oil change and filter change | Model 204 | AP18.00-P-0101CWZ | |
| Model 207 | AP18.00-P-0101EW | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 11 | Carry out engine test run and check engine for proper operation and leaks |
OIL PAN
| Number | Designation | Engine 272 | Engine 273 | |
|---|---|---|---|---|
| BA01.45-P-1006-01M | Mounting bolt for oil dipstick guide tube | Nm | 9 | 9 |
