Check vehicle level at front and rear axle with electronic inclinometer, adjust if necessary - AR40.20-P-0301CW

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 172, 204, 207

Fig 1: Identifying Inclinometer And Measuring Sensor
G07741106Courtesy of MERCEDES-BENZ USA

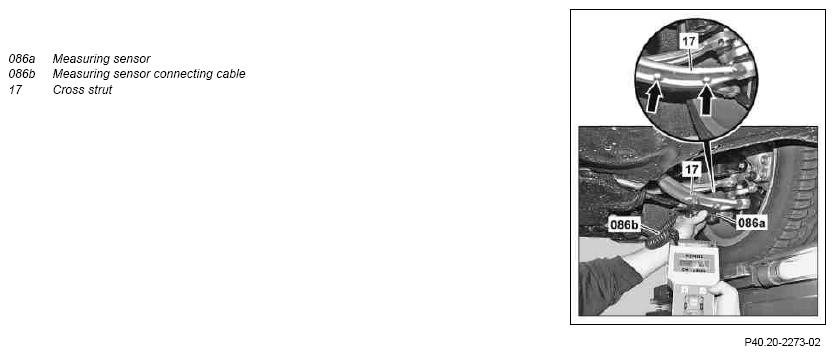

Shown on model 204.0 without 4MATIC, measuring point on 2nd cross strut (17) at right front (old version)

Fig 2: Measuring Point On 2nd Cross Strut (Old Cross Strut Version)
G07741107Courtesy of MERCEDES-BENZ USA

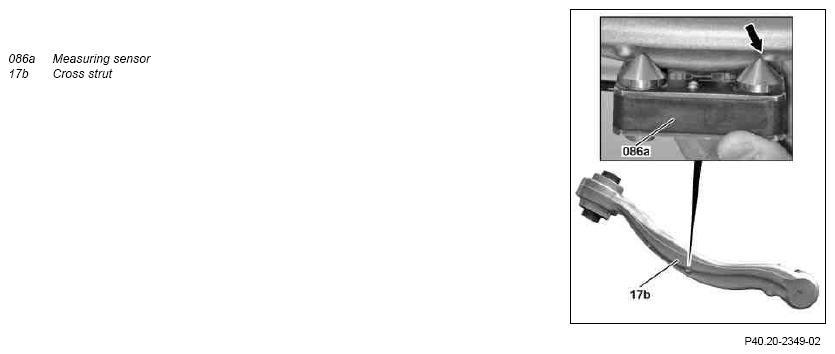

Shown on model 204.0 without 4MATIC, measuring point on 2nd cross strut (17b) at right front (new version)

Fig 3: Identifying Cross Strut And Measuring Sensor
G07741108Courtesy of MERCEDES-BENZ USA

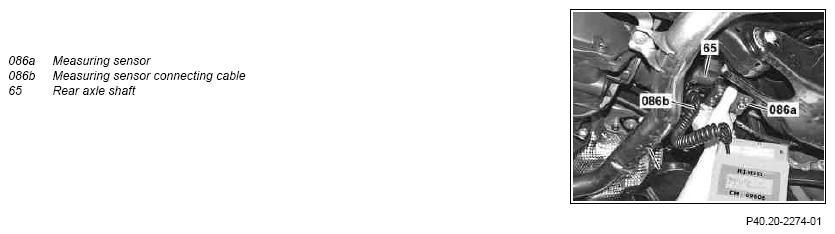

Shown on model 204.0 without 4MATIC, measuring point on 4th rear-axle shaft (65) at right

Fig 4: Measuring Point On 4th Rear-Axle shaft
G07741110Courtesy of MERCEDES-BENZ USA
MODIFICATION NOTES

11.7.11 Value changed: Rear axle vehicle level Model 204.0/2/3 except AMG, 4MATIC with code 483, 486 *BE40.20-P-1001-03P
INSPECT Checking
1 Carry out preconditions and tests for vehicle level measurement   AR40.00-P-0202A
2 Clean measuring points IMPORTANT This prevents any measuring errors.
3 Mount measuring sensor (086a) on cross strut (17) and read off vehicle level on inclinometer (086) NOTES The measurement sensor connecting cable (086b) must face towards the vehicle center. Otherwise the measurement will be inaccurate.
IMPORTANT Measure vehicle level at
  • Measuring point 1 (left front) and
  • measuring point 2 (right front) and store measured values.

Model 204 except 204.08/09/28/29/9 with old cross strut (17):
Mount the measuring sensor (086a) between the cast-in humps (arrows).
Model 204 except 204.08/09/28/29/9 with new cross strut (17b), model 172, 207:
In order to prevent the measuring sensor (086a) on the cross strut (17b) and therefore an erroneous measurement, the measuring sensor (086a) must be mounted between the cast-in humps (arrows) and pressed towards the wheel. The measuring sensor (086a) must contact the outboard humps (arrow).
    Model 204, 207 *BE40.20-P-1001-02P

REFER TO COMPONENT MODIFICATIONS Cross strut (17b) changed Model 204 except 204.08/09/28/29/9. BT33.15-P-0050-01CW
4 Mount the measuring sensor (086a) on rear axle shaft (65) and read off vehicle level on the inclinometer (086) NOTES The measurement sensor connecting cable (086b) must face towards the vehicle center. Otherwise the measurement will be inaccurate.
IMPORTANT Measure vehicle level at
  • Measuring point 3 (left front) and
  • measuring point 4 (right front) and store measured values.

    Model 204, 207 *BE40.20-P-1001-03P
5 Check the maximum permissible difference in vehicle level between the left and right side of the vehicle IMPORTANT The specified test tolerance applies only when checking the vehicle level but not for calibration.
If the vehicle level at the front or rear axle is out of tolerance, the springs and spring-rubber mounts must be checked for signs of wear and damage.
Permissible difference in vehicle level at front axle between right and left sides of the vehicle:
    Model 204, 207 *BE40.20-P-1002-02P
    Permissible difference in vehicle level at rear axle between right and left sides of the vehicle:
    Model 204, 207 *BE40.20-P-1002-03P
6 Check and correct the adjustment of the headlamps Only if the vehicle level was adjusted.
    Model 204 AP82.10-P-8260CW
CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number Designation     Model 204.0/2 except AMG, 4MATIC, with code 485, 677 with cross strut old version Model 204.0/2/3 except AMG, 4MATIC, with code 485, 677 with cross strut new version
BE40.20-P-1001-02P Vehicle level - front axle   ∠° +6.7 (±1.6) +8.3 (±1.6)
BE40.20-P-1002-02P Permissible difference in vehicle level between right and left side of vehicle When checking ∠° 0.8 0.8
  When calibrating with Star Diagnosis ∠° - -
CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number Designation     Model 204.0/2 except AMG, 4MATIC, with code 482 with cross strut old version Model 204.0/2 except AMG, 4MATIC, with code 482 with cross strut new version
BE40.20-P-1001-02P Vehicle level - front axle   ∠° +9.1 (±1.6) +10.6 (±1.6)
BE40.20-P-1002-02P Permissible difference in vehicle level between right and left side of vehicle When checking ∠° 0.8 0.8
  When calibrating with Star Diagnosis ∠° - -
CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number Designation     Model 204.0/2 except AMG, 4MATIC, with code 483, 486 with cross strut old version Model 204.0/2/3 except AMG, 4MATIC, with code 483, 486 with cross strut new version
BE40.20-P-1001-02P Vehicle level - front axle   ∠° +4.3 (±1.6) +5.9 (±1.6)
BE40.20-P-1002-02P Permissible difference in vehicle level between right and left side of vehicle When checking ∠° 0.8 0.8
  When calibrating with Star Diagnosis ∠° - -
CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number Designation     Model 204.0/2/3 AMG
BE40.20-P-1001-02P Vehicle level - front axle   ∠° +6.4 (±1.6)
BE40.20-P-1002-02P Permissible difference in vehicle level between right and left side of vehicle When checking ∠° 0.8
  When calibrating with Star Diagnosis ∠° -
CHECK VALUES FOR REAR AXLE VEHICLE LEVEL CONTROL

Number Designation     Model 204.0/2/3 except AMG, 4MATIC with code 485, 677 Model 204.0/2 except AMG, 4MATIC with code 482
BE40.20-P-1001-03P Vehicle level - rear axle   ∠° +2.0 (±1.0) +3.5 (±1.0)
BE40.20-P-1002-03P Permissible difference in vehicle level between right and left side of vehicle When checking ∠° 0.5 0.5
  When calibrating with Star Diagnosis ∠° - -
CHECK VALUES FOR REAR AXLE VEHICLE LEVEL CONTROL

Number Designation     Model 204.0/2/3 except AMG, 4MATIC with code 483, 486 Model 204.0/2/3 AMG
BE40.20-P-1001-03P Vehicle level - rear axle   ∠° +0.3 (±1.0) +0.7 (±1.0)
BE40.20-P-1002-03P Permissible difference in vehicle level between right and left side of vehicle When checking ∠° 0.5 0.5
  When calibrating with Star Diagnosis ∠° - -
