Removing and installing front brake control cable - AR42.20-P-0520V: Notes
MODELS 171.442 /454 /456 /473
| Remove/install | |||
|---|---|---|---|
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. | - | |
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| 1 | Release parking brake | ||
| 2 | Hoist vehicle with lifting platform until wheels are free | AR00.60-P-1000V | |

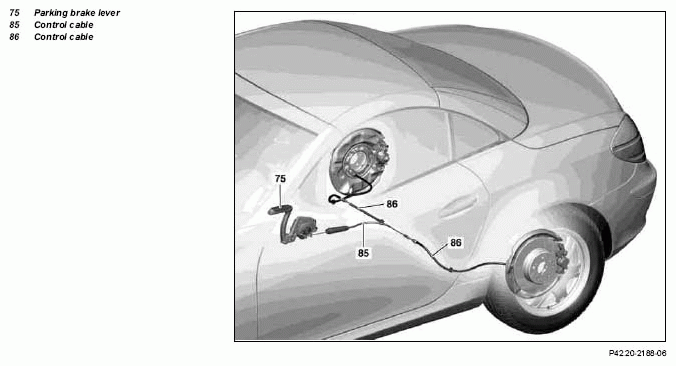

| 3 | Unclip the rear parking brake cable (86) from the front parking brake cable (85) | AR42.20-P-0520-03VH | |
| Figure | |||
| 4 | Remove parking brake lever (75) | AR42.20-P-0500V | |
| 5 | Unhook the front parking brake cable (85) at the parking brake lever (75) | AR42.20-P-0520-03VV | |
| 6 | Remove the front parking brake cable (85) downwards | ||
| 7 | Install in the reverse order | ||
| 8 | Operate parking brake lever (75) several times | ||
| Check | |||
| 9 | Check operating travel of parking brake lever (75) and unobstructed movement of the rear wheels | Number of notches at which the parking brake must be adjusted if up to that point there is insufficient braking effect |
*BE42.20-P-1005-01A |
| Adjusting parking brake. | AR42.20-P-0540V |
TEST VALUES FOR PARKING BRAKE
| Number | Designation | Model 171 |
|---|---|---|
| BE42.20-P-1005-01A | Number of notches at which the parking brake must be adjusted if up to that point there is insufficient braking effect | 5 |
