Detach brake cables - AR42.20-P-0520-03VV

  1. Pull tensioning shackle (84) of the front cable of the parking brake (85) as far as possible into the passenger compartment.
  2. Unhook tension cable (75a) of parking brake lever (75) from tensioning shackle (84).

IMPORTANT Push tension cable (75a) against the spring force of the retaining spring into the tensioning shackle (84) and guide tension cable (75a) out of the tensioning shackle (84).

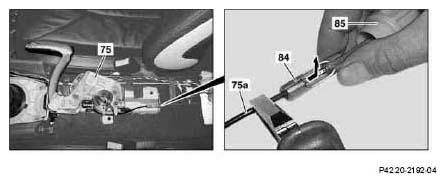

Fig 1: Pulling Tensioning Shackle And Front Cable Of Parking Brake
G05027636Courtesy of MERCEDES-BENZ USA
