Remove/install outer rear wheelhouse - AR63.10-P-0665V

MODEL 171

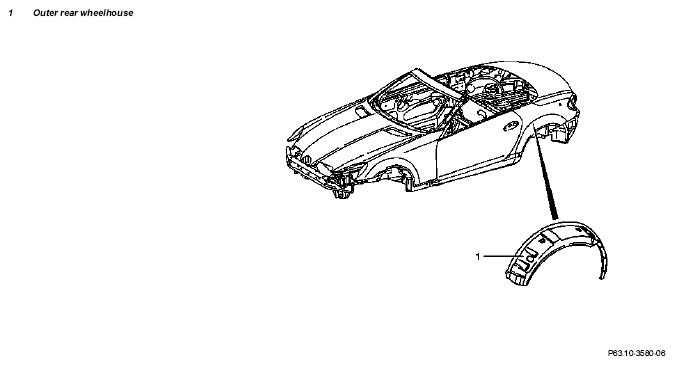

Fig 1: Identifying Outer Rear Wheelhouse
G05028041Courtesy of MERCEDES-BENZ USA
REMOVING Remove
DANGER Risk of death  caused by high voltage used for arc welding. Risk of explosion  caused by welding in the area of highly inflammable materials. Risk of injury  caused by welding spatter and UV-light while welding. Risk of poisoning  caused by inhaling welding vapors. Use insulating mats. Wear protective clothing, safety glasses and protective mask. Remove highly inflammable materials from the hazard area. Use air extractor. -
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between the columns of the hydraulic hoist and position the four support plates below the hoist support points specified by the vehicle manufacturer. -
DANGER Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and undeburred vehicle parts.
Deburr replacement panels.
-
NOTES Measures for preventing damage to vehicles or components when performing arc welding work All models -
NOTES General information on body repair All models -
NOTES Notes on paintwork repairs Model 124, 126, 129, 140, 163, 168, 170, 171, 201, 202, 203, 208, 209, 210, 211, 215, 220, 230, 240, 414, 463, 639 -
IMPORTANT General information on MB materials Model 124, 126, 129, 140, 163, 168, 170, 171, 201, 202, 203, 208, 209, 210, 211, 215, 220, 230, 240, 414, 463, 639 -
1     Remove detachable parts in area to be repaired
2 Cover all attached parts remaining in vehicle Tarpaulin (fireproof) *WH58.30-Z-1001-40A
3 Remove rear fender   AR63.50-P-1400V
4 Remove side rear inner panel   AR63.20-P-1400V
5 Remove outer B-pillar with side longitudinal member   AR63.20-P-1370V
6 Separate outer rear wheelhouse (1)   AR63.10-P-0660-01VA
    SPECIAL TOOL Spot weld milling cutter Figure
    COMMERCIALLY AVAILABLE TOOLS Round wire brush, braided, dia. 70 mm *WH58.30-Z-1001-03A
    COMMERCIALLY AVAILABLE TOOLS Abrasive disk, dia. 115 mm, 80 m/s (max. 13, 250 rpm) *WH58.30-Z-1024-04A
    COMMERCIALLY AVAILABLE TOOLS Cutting disc, dia. 65 mm, 80 m/s (max. 23, 500 rpm) *WH58.30-Z-1021-04A
    Drill (electric/pneumatic) *WE58.40-Z-1001-03A
    Straight grinder (electric/pneumatic) *WE58.40-Z-1002-03A
    Angular grinder (electric/pneumatic) *WE58.40-Z-1003-03A
    Wet/dry vacuum cleaner *WE58.40-Z-1005-03A
    Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
7 Prepare outer rear wheelhouse (1) for installation   AR63.10-P-0670-05V
    COMMERCIALLY AVAILABLE TOOLS Round wire brush, braided, dia. 70 mm *WH58.30-Z-1001-03A
    COMMERCIALLY AVAILABLE TOOLS Abrasive disk, dia. 115 mm, 80 m/s (max. 13, 250 rpm) *WH58.30-Z-1024-04A
    COMMERCIALLY AVAILABLE TOOLS Drill (electric/pneumatic) *WE58.40-Z-1001-03A
    Angular grinder (electric/pneumatic) *WE58.40-Z-1003-03A
    Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
INSTALLING Install
8 Install outer rear wheelhouse (1) and weld in   AR63.10-P-0670-06V
    SPECIAL TOOL Feeler gauge Figure
    COMMERCIALLY AVAILABLE TOOLS Electrode miller *WH58.30-Z-1003-01A
    COMMERCIALLY AVAILABLE TOOLS Clamping pliers *WH58.30-Z-1003-02A
    COMMERCIALLY AVAILABLE TOOLS Round wire brush, braided, dia. 70 mm *WH58.30-Z-1001-03A
    Spot welder *WE58.40-Z-1002-02A
    Drill (electric/pneumatic) *WE58.40-Z-1001-03A
    Wet/dry vacuum cleaner *WE58.40-Z-1005-03A
    Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
9 Adjust gap dimensions on hoods, doors and lids   AR60.00-P-0700-01V
    SPECIAL TOOL Feeler gauge Figure
    Front door to rear fender *BE60.00-P-1002-01L
    Trunk lid to rear fender *BE60.00-P-1003-01L
    Trunk lid to taillamp *BE60.00-P-1003-01L
    Rear fender to taillamp *BE60.00-P-1003-01L
    Fuel filler flap *BE60.00-P-1005-01L
10 Install B-pillar with side longitudinal member   AR63.20-P-1370V
11 Install side rear inner panel   AR63.20-P-1400V
12 Install rear fender   AR63.50-P-1400V
13 Clean welds and sheet metal flange with round wire brush
    COMMERCIALLY AVAILABLE TOOLS Round wire brush, braided, dia. 70 mm *WH58.30-Z-1001-03A
    Drill (electric/pneumatic) *WE58.40-Z-1001-03A
14 Clean repair areas
15 Prime area to be repaired with priming filler
16 Carry out seam sealing after repairs IMPORTANT Supplement standard sealing with MB body sealant. AR97.10-P-4000V
    Sealant *BR00.45-Z-1003-01A
17 Paint repair areas and adjacent surfaces
18 Apply additional cavity preservation   AR97.20-P-1500V
NOTES Notes on cavity preservation Model 124, 126, 129, 140, 170, 171, 201, 202, 203, 208, 209, 210, 211, 215, 220, 230, 240, 463, 639, 671, 690.6, 901, 902, 903, 904, 905
Model WD1, WD2, WD3, WD6, WD7, XD1, XD2, XD3, XD4, XD5, XD6, XD7, YD1, YD2, YD3, YD4, YD5, YD6, YD7
-
    Cavity preservation gun Sata HRS no. 11072 *WE58.40-Z-1006-08A
    MB cavity wax preservation, 1 | *BR00.45-Z-1003-05A
19 Remove tarpaulin IMPORTANT On all covered parts remaining in vehicle.
20 Install all removed detachable body components
TEST AND ADJUSTMENT VALUES, GAP DIMENSIONS AT HOODS, DOORS AND COVERS

Number Designation Model 171
BE60.00-P-1002-01L Gap dimension Front door to rear fender Dimension "P" mm 3.0+0.8
For figure, see AR60.00-P-0700-01V
BE60.00-P-1003-01L Gap dimension Trunk lid to rear fender Dimension "F" mm 3.5+1.5
Trunk lid to taillamp Dimension "M" mm 4.0 (+1.6/-0.5)
Trunk lid to bumper Dimension "V" mm 5.0 (+1.5/-1.0)
Rear fender to taillamp Dimension "U" mm 2.5 ± 0.5
Trunk lid tip to rear fender Dimension "E" mm 5.0 (+1.5)
For figure, see AR60.00-P-0700-01V
BE60.00-P-1005-01L Gap dimension Fuel filler flap Dimension "K" mm 3.0 ± 0.5
For figure, see AR60.00-P-0700-01V
Fig 2: Identifying Spot Weld Milling Cutter (201 589 00 51 00)
G05028042Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Feeler Gauge (129 589 03 21 00)
G05028043Courtesy of MERCEDES-BENZ USA
COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1002-01A Ball cutter, dia. 12 mm
WH58.30-Z-1003-01A Electrode miller
WH58.30-Z-1006-01A Vario Drill WS 91 spot weld removing tool
WH58.30-Z-1003-02A Clamping pliers
WH58.30-Z-1001-03A Round wire brush, braided, dia. 70 mm
WH58.30-Z-1021-04A Cutting disk, dia. 65 mm, 80 m/s (max. 23, 500 rpm)
WH58.30-Z-1024-04A Abrasive disk, dia. 115 mm, 80 m/s (max. 13, 250 rpm)
WH58.30-Z-1001-40A Tarp (fire-resistant)
WORKSHOP EQUIPMENT

WE58.40-Z-1002-02A Spot welder
WE58.40-Z-1001-03A Drill (electric/pneumatic)
WE58.40-Z-1002-03A Straight grinder (electric/pneumatic)
WE58.40-Z-1003-03A Angle grinder (electric/pneumatic)
WE58.40-Z-1005-03A Wet/dry vacuum cleaner
WE58.40-Z-1006-08A Cavity preservation gun
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1041-01A Seam sealant, sprayable 310 ml A 002 989 84 20
BR00.45-Z-1003-01A Sealant A 001 989 63 20
BR00.45-Z-1003-05A Preservation agent A 000 986 72 70 05
BR00.45-Z-1001-07A Zinc dust paint suitable for spot welding A 000 986 34 42
