Prepare rear outer wheelhouse for installation - AR63.10-P-0670-05V

COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1001-03A Round wire brush, braided, dia. 70 mm
WH58.30-Z-1021-04A Cutting disk, dia. 65 mm, 80 m/s (max. 23, 500 rpm)
WH58.30-Z-1024-04A Abrasive disk, dia. 115 mm, 80 m/s (max. 13, 250 rpm)
WORKSHOP EQUIPMENT

WE58.40-Z-1001-03A Drill (electric/pneumatic)
WE58.40-Z-1002-03A Straight grinder (electric/pneumatic)
WE58.40-Z-1003-03A Angle grinder (electric/pneumatic)
WE58.40-Z-1004-03A Body saw (electric/pneumatic)
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1001-07A Zinc dust paint suitable for spot welding A 000 986 34 42
  1. Mark separation point (area C).

    IMPORTANT Measure separation point on vehicle by fitting, observe additional amount for overlap

  2. Cut separation point with body saw (area C).

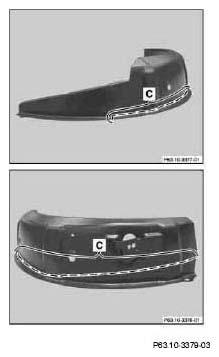

    Fig 1: Identifying Separation Point (Area C)
    G05028049Courtesy of MERCEDES-BENZ USA
  3. Sand down connection surfaces to bare metal in the shaded areas.

    IMPORTANT Sand down spot weld flanges down to bare metal on both sides.

  4. Coat insides of spot weld flanges with zinc dust paint.

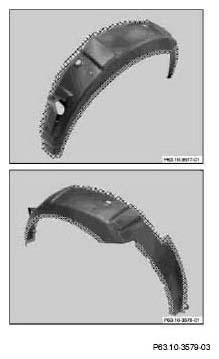

    Fig 2: Identifying Connection Surfaces (Shaded Areas)
    G05028050Courtesy of MERCEDES-BENZ USA
