Attach engine hoist - AR33.10-P-0105SX

MODEL 221, 216

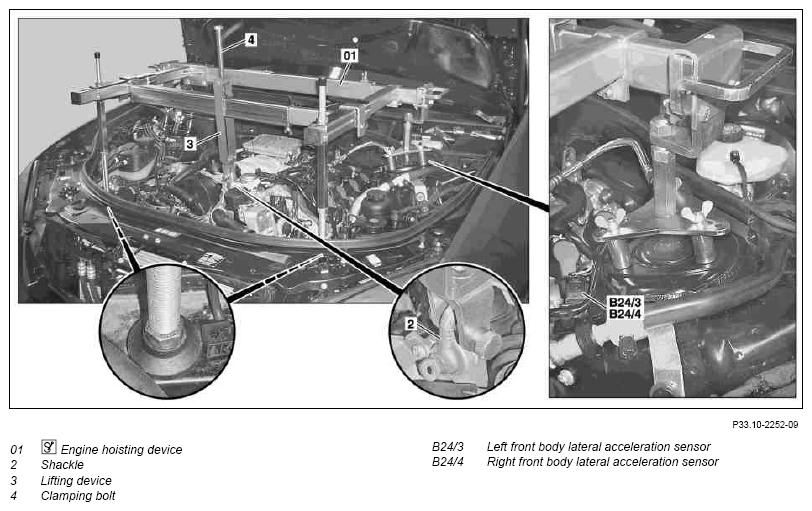

Fig 1: Attaching Engine Hoist

Courtesy of MERCEDES-BENZ USA

	Installing, removing
1.1	Remove air filter housing	Engine 157, 278
		Engine 272, 273	AR09.10-P-1150SX
		Engine 275	AR09.10-P-1150LA
		Engine 629 in model 221	AR09.10-P-1150SXD
1.2	Remove upper engine cover	Engine 642 in model 221	AR01.10-P-2405SXI
		Engine 651
1.3	Remove front engine cover	Engine 156
2	Remove washer fluid reservoir	Vehicles with code (489) AIRmatic	AR82.35-P-6000SX
3	Remove power steering expansion reservoir	Vehicles with electrohydraulic power steering (EHPS). Release expansion reservoir, pull upwards and place to one side with hoses attached.
4	Remove hydraulic oil reservoir (ABC)	Vehicles with code (487) Active Body Control (ABC)	AR32.50-P-0022SX
5	Preassemble engine hoist (01)	Engine hoist	Fig 2
6	Attach adapter to engine lifting device (01)	Engine 642, 651
		Adapted engine lifting device	Fig 3
7	Mount preassembled engine lifting device (01) on strut towers and longitudinal member.	Do not damage the left front body lateral acceleration sensor (B24/3) or right front body lateral acceleration sensor (B24/4). Do not crush any lines and hoses in the area of the longitudinal member. Observe manufacturer's assembly specifications and safety information.
8	Adjust engine lifting device (01) and tighten bolted connection
9	Mount rear lifting eye onto front of engine	Engine 157, 278	AR33.10-P-0105-01SX
		Lifting eye	Fig 4
			*BA01.30-P-1006-01X
10	Fit shackle (2) to front engine suspension lug
11	Tighten tensioning bolt (4) and tighten lifting device (3)
12	Remove in the reverse order

CYLINDER HEAD

Number	Designation		Engine 157	Engine 278
BA01.30-P-1006-01X	Bolt, lifting eye to cylinder head	Nm	14	14

Fig 2: Identifying Engine Lifting Fixture (240 589 00 61 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Adapted Engine Lifting Device (642 589 00 61 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Lifting Eye (278 589 00 40 00)

Courtesy of MERCEDES-BENZ USA
