Remove/install washer fluid reservoir of windshield washer system - AR82.35-P-6000SX
MODEL 216.386
MODEL 221.0 /1 except CODE (487) Active Body Control (ABC)

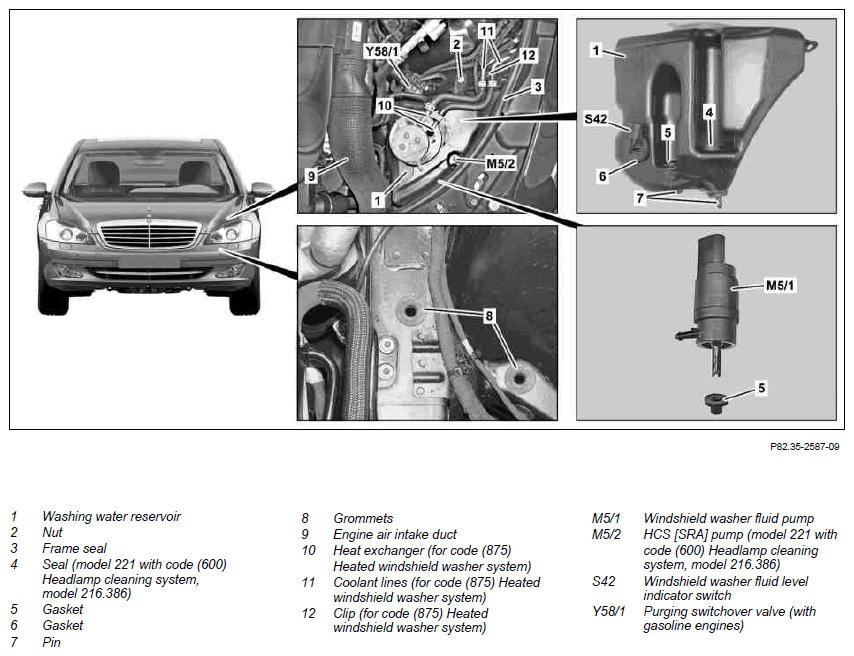

Shown on model 221 with code (600)
Headlamp cleaning system and code (875) Heated windshield washer system
MODIFICATION NOTES
| 3.3.08 | Repair method has been revised | Step 2 |
| Remove/install | |||
|---|---|---|---|
| 1 | Remove purging switchover valve (Y58/1) from bracket and place to one side with lines connected | With gasoline engines | |
| 2 | Unclip coolant lines from wheel well, remove heat exchanger from washer fluid reservoir (1) and place to one wide with coolant lines attached. | In vehicles with code (875) heated windshield washer system |
|
| 3 | Remove engine air intake duct (9) | ||
| 4 | Unscrew nut (2) | ||
| 5 | Lift up washer fluid reservoir (1) until the detachable parts are accessible | ||
| 6 | Unclip windshield washer fluid pump (M5/1) and place to one side with lines attached | Figure | |
| 7 | Unclip HCS [SRA] pump (M5/2) and place to one side with lines attached | Model 221 with code (600) Headlamp cleaning system, model 216.386 |
Figure |
| 8 | Disconnect electrical connector at the switch of the windshield washer system fluid level control (S42) | ||
| 9 | Remove washer fluid reservoir (1) | ||
| 10 | Detach windshield washer fluid level indicator switch (S42) | When replacing the washer fluid reservoir (1). |
|
| 11 | Remove heat exchanger cover from new washer fluid reservoir (1) | When replacing the washer fluid reservoir (1) on vehicles with code (875) Heated windshield washer system. |
Figure |
| 12 | Install in the reverse order | ||
| 13 | Fill washer fluid reservoir (1) | ||
| Windshield washer system - inspect fluid level, adjust to correct level | AP82.35-P-8210SX |
