Remove/install rack-and-pinion steering - AR46.20-P-0600SX

MODEL 216, 221

Shown on vehicle with mechanical power steering pump

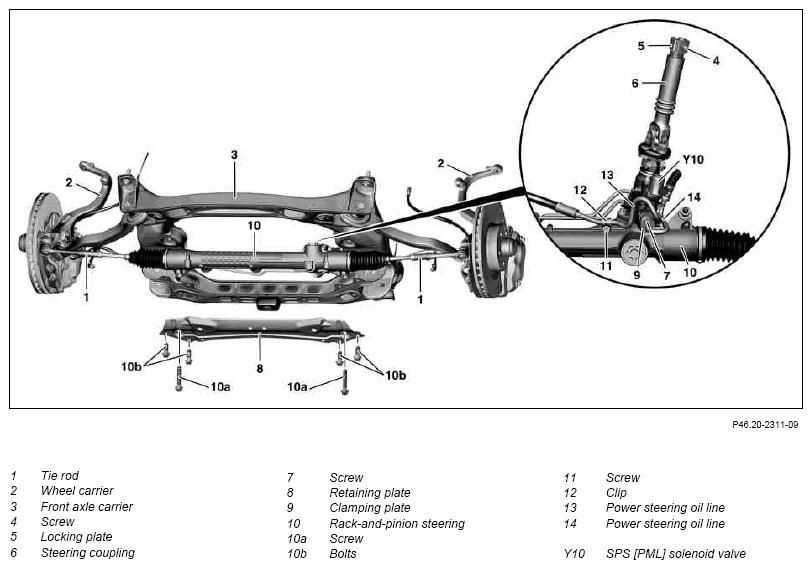

Fig 1: Identifying Rack-And-Pinion Steering Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Evaluating steering rack when repairing accident vehicles		AH46.20-P-9409-01A
		The area surrounding the separation point should be cleaned thoroughly before opening the hydraulic system. Even the smallest dirt particles, introduced into the hydraulic components, can lead to malfunctions and a total failure of the hydraulic system
1	Deactivate easy entry/exit function	Vehicles with memory package (driver seat, steering column, mirrors) code 275	AR54.30-P-1000-02ESX
2	Turn steering wheel to central position (front wheels in straight ahead position) and secure with the retaining device	Do not turn the steering wheel with a removed steering coupling (6). Otherwise the clock spring contacts may be destroyed.
		Set of plugs	Fig 2
		Holding device	Fig 3
3	Remove the left engine intake air duct	Vehicles with gasoline engine without electrohydraulic power steering (EHPS) and  without code (487) Active Body Control (ABC)
4	Remove engine trim panel	Engine 642 in model 221	AR01.10-P-2405SXI
5	Extract oil from power steering expansion reservoir	Hand pump	Fig 6
6	Remove front wheels		AP40.10-P-4050SX
7	Remove bottom engine compartment paneling	Model 216, model 221 without code (Z07) Highest protection	AR61.20-P-1105SX
		Model 221 with CODE (Z07) Highest protection	AR61.20-P-1105SXS
8	Detach tie rods (1) from wheel carriers (2)		AR46.40-P-0200-02SX
			*BA46.40-P-1001-01M
		Thrust piece	Fig 4
		Press	Fig 5
		Puller	Fig 7
		Puller	Fig 8
9	Unscrew steering coupling (6) from lower steering shaft; to do so, remove bolt (4) from locking plate (5)	The locking plate (5) is not available as a replacement part. Installation:  Insert a new self-locking nut into the existing locking plate (5).
			*BA46.10-P-1001-01L
10	Pull lower steering shaft upward out of steering coupling (6)	Do not use force (hammer blows, excessive leverage). The lower steering spindle may be damaged through laterally- acting forces.
		Installation:  Rotate rack-and-pinion steering (10) to the center position.	AR46.20-P-0600-01SX
11	Disconnect electrical connector from solenoid valve (Y10)
12	Detach clamp (12) from rack-and-pinion steering (10)
13	Detach clamping plate (9) from rack-and- pinion steering (10) and pull out oil lines (13, 14)		*BA46.20-P-1003-01M
		Set of plugs	Fig 2
14	Support rack-and-pinion steering (10) using transmission platform and transmission jack	Transmission jack Transmission platform for passenger cars and commercial vehicles
15	Detach rack-and-pinion steering (10) from front axle carrier (3), to do so remove bolts (10a, 10b)	Installation:  Replace bolts and nuts.
			*BA46.20-P-1001-01M
			*BA46.20-P-1002-01M
16	Remove retaining plate (8)
17	Remove rack-and-pinion steering (10)
18	Install in the reverse order
19	Fill power steering pump and bleed		AR46.30-P-0010SX
20	Check front axle toe and adjust if necessary	After installing new parts.	AR40.20-P-0200SX

Fig 2: Identifying Set Of Stop Plugs (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Holding Device (129 589 01 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Thrust Piece (140 589 00 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Press (163 589 03 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Hand Pump (210 589 00 71 00)

Courtesy of MERCEDES-BENZ USA

Fig 7: Identifying Puller (221 589 00 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 8: Identifying Puller (221 589 05 33 00)

Courtesy of MERCEDES-BENZ USA
