Check track rod and drag link linkage for play, check rubber boots - AP46.00-P-4653SX

MODEL 216

MODEL 221

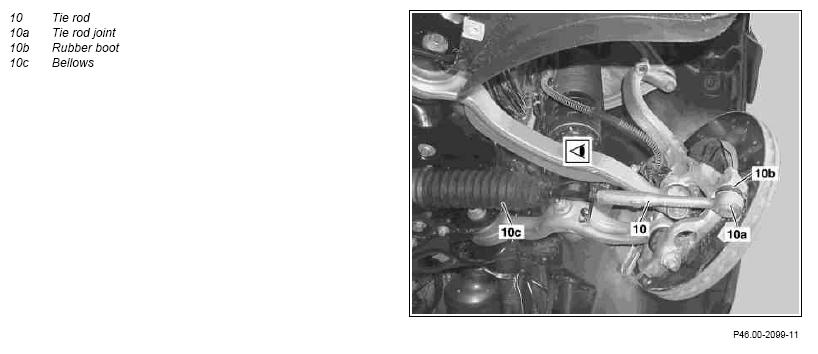

Fig 1: Identifying Tie Rod, Joint, Rubber Boot, And Bellows

Courtesy of MERCEDES-BENZ USA

	Checking
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury caused by moving parts that can pinch, crush or  , in extreme cases, even sever extremities.	No parts of the body or limbs should be within the operating range of the mechanism when moving components.	AS00.00-Z-0009-01A
1	Turn key in ignition lock into position 0
2	Hoist vehicle with lifting platform until wheels are free
3	Check tie rod joint (10a) of right and left tie rod (10).	Check tie rod joint (10a) for play by pulling and pushing vigorously, if there is play: ↓
		Replace track rod.	AR46.40-P-0200SX
4	Check rubber boots (10b) of tie rod joints (10a)	Check rubber boots (10b) for leaktightness and condition, if necessary: ↓
		Replace track rod.	AR46.40-P-0200SX
5	Check left and right bellows (10c)	Do not check the bellows (10c) by pressing in or around the beads as this causes damage to the material, eventually resulting in leaks. Stretch bellows (10c) by turning steering to left and right wheel lock; check for cracks, indentations and chafing. If damage is present: ↓
		Check/replace bellows.	AR46.40-P-0400SX
6	Lower vehicle
