Remove/install resonance intake manifold - AR09.20-P-1961SMG

ENGINE 156 in MODEL 216, 221

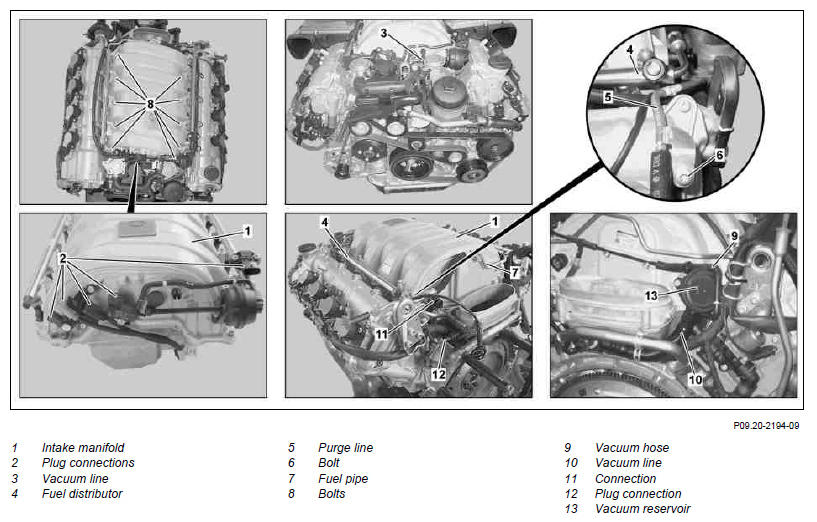

Fig 1: Identifying Resonance Intake Manifold Components

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

6.8.09	Value changed: Bolt, intake manifold to cylinder head		*BA09.20-P-1002-01R
	Value changed: Bolt, intake manifold to cylinder head		*BA09.20-P-1002-01R
	Value changed: Bolt, intake manifold to cylinder head		*BA09.20-P-1002-01R

	Remove/install
	Risk of explosion  caused by fuel igniting, risk of poisoning  caused by inhaling and swallowing fuel and risk of injury  to eyes and skin caused by contact with fuel	No fire, sparks, open flames or smoking. Only pour fuels into suitable and appropriately marked containers. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A
	Risk of injury  caused by fingers being pinched or crushed  when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
1	Switch ignition off, remove ignition key (transmitter key).
2	Open engine hood
3	Remove both engine suction fan ducts in front of air filter
4	Remove front engine cover	Do not tilt front engine cover, but lift upwards vertically otherwise the retaining lugs can break off.
5	Remove air filter housing		AR09.10-P-1150SMG
6	Release fuel pressure with pressure hose via service valve		AR07.03-P-1460-01TMG
			Fig 2
7	Detach fuel line from fuel distributor (4)	Install new sealing rings.
			*BA07.03-P-1001-01C
8	Disconnect connectors (2) at intake pipe (1) at front
9	Detach vacuum line (3)
10	Detach brake booster vacuum line at connection (11)
11	Remove insulating cover
12	Disconnect connectors for injection valves	Place wiring hardness to side.
13	Remove bolt (6) and purge line (5)		*BA07.03-P-1002-01C
14	Detach vacuum hose (9) from intake manifold (1) or from vacuum unit (13)	Detach hose to vacuum reservoir.
15	Remove vacuum line (10).
16	Disconnect connector (12)
17	Remove bolts (8) from intake pipe (1) then remove intake pipe (1) upwards	Close off intake ports in doing so Injection valves is not damaged. Installation:  Clean sealing surfaces; replace intake manifold seals and bolts.
		Installation:  Observe tightening pattern for fastening the intake manifold.	AR09.20-P-1310-03AMG
			*BA09.20-P-1002-01R
	Seals and bolts on the intake manifold		BT09.20-P-0005-01AMG
18	Install in the reverse order
	Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
19	Carry out engine test run and check intake manifold (1) for leaks

INJECTORS, INJECTION VALVES, LINES

Number	Designation		Engine 156
BA07.03-P-1001-01C	Union nut, fuel line to fuel distributor	Nm	20
BA07.03-P-1002-01C	Bolt, fuel distributor to resonance intake manifold	Nm	9

INTAKE MANIFOLD

Number	Designation			Engine 156
BA09.20-P-1002-01R	Bolt, intake manifold to cylinder head	Stage 1	Nm	10
		Stage 2	∠°	90
		Stage 3	∠°	10

Fig 2: Identifying Pressure Hose (119 589 04 63 00)

Courtesy of MERCEDES-BENZ USA
