Torque diagram for intake manifold fastening system - AR09.20-P-1310-03AMG

MODIFICATION NOTES

6.8.09 Value changed: bolt, intake manifold to cylinder head   *BA09.20-P-1002-01R
  Value changed: bolt, intake manifold to cylinder head   *BA09.20-P-1002-01R
  Value changed: bolt, intake manifold to cylinder head   *BA09.20-P-1002-01R
INTAKE MANIFOLD

Number Designation Engine 156
BA09.20-P-1002-01R Bolt, intake manifold to cylinder head Stage 1 Nm 10
Stage 2 ∠° 90
Stage 3 ∠° 10
  1. Tighten bolts on the intake manifold in numerical sequence.

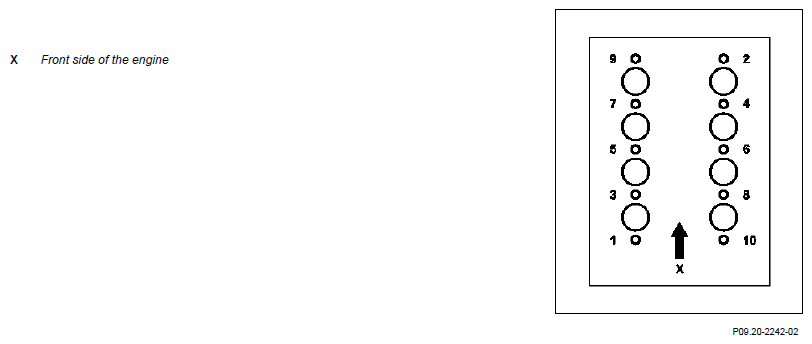

    Fig 1: Tightening Sequence Of Intake Manifold Bolts
    G07644182Courtesy of MERCEDES-BENZ USA
