Remove/install charge air manifold - AR09.41-P-1310HH

ENGINES 275 in MODEL 215, 216, 220, 221, 230

ENGINES 285 in MODEL 240

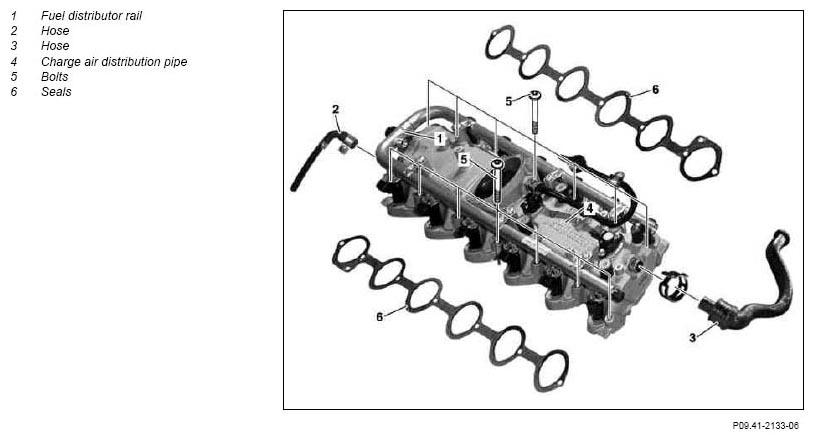

Fig 1: Identifying Charge Air Manifold Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove fuel distributor rail (1)		AR07.03-P-1451H
2	Remove hose (3) of crankcase ventilation system	Check hose (3) and hose clamp for damage, replace if required.
3	Detach hose (2) at charge air manifold (4)	Check hose (2) and hose clamp for damage, replace if required.
4	Detach rear vacuum supply hose of brake system at charge air manifold (4)	Engine 275 Check vacuum supply hose and hose clamp for damage, replace if required.
5	Remove bolts (5) of charge air manifold (4)		*BA09.20-P-1001-01L
6	Take out charge air manifold (4)	Installation:  Replace seals (6)..
7	Install in the reverse order
