Charge air cooling circulation pump, location/task/function - GF09.41-P-3102M
ENGINE 275.950 in MODEL 215, 220
ENGINE 275.951 in MODEL 230 up to Model Year 08 /AEJ 07
ENGINE 275.953 in MODEL 216, 221 up to Model Year 08 /AEJ 07
ENGINE 275.954 in MODEL 230 up to Model Year 08 /AEJ 07
ENGINE 275.980 in MODEL 215, 220
ENGINE 275.981 in MODEL 230 up to Model Year 08 /AEJ 07
ENGINE 275.982 in MODEL 216, 221 up to Model Year 08 /AEJ 07
ENGINE 285.950 in MODEL 240
ENGINE 285.980 in MODEL 240

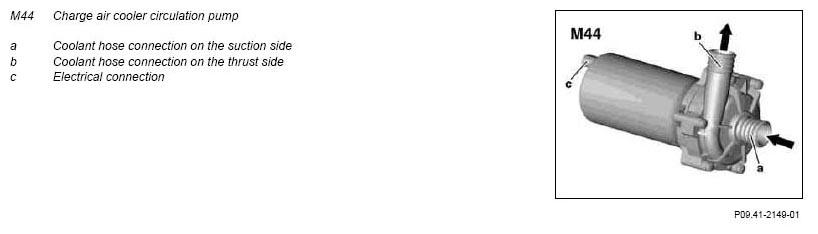

Fig 1: Identifying Charge Air Cooler Circulation Pump, Coolant Hose Connections & Electrical Connection
| Charge air cooling circulation pump, arrangement | Model 215, 220 | GF09.41-P-3102-01K | |
| Model 216, 221 | GF09.41-P-3102-01MS | ||
| Model 230 | GF09.41-P-3102-01RA | ||
| Model 240 | GF09.41-P-3102-01M | ||
| Charge air cooling circulation pump task | Keep the charge air temperature below 70°C by means of coolant circulation. | ||
| Charge air cooling circulation pump function | The circulation pump is actuated via a relay by the engine control unit. Switch on: Charge air temperature above approx. 47°C Switch off: Charge air temperature below approx. 35°C. |
